Smith & Wesson N Frame Model 629-5 & Up Bolt Spring & Plunger MIM .44 Magnum Used 629AAB

Smith & Wesson N Frame Model 629-5 & Up Bolt Spring & Plunger MIM .44 Magnum Used 629AAB

$14.99

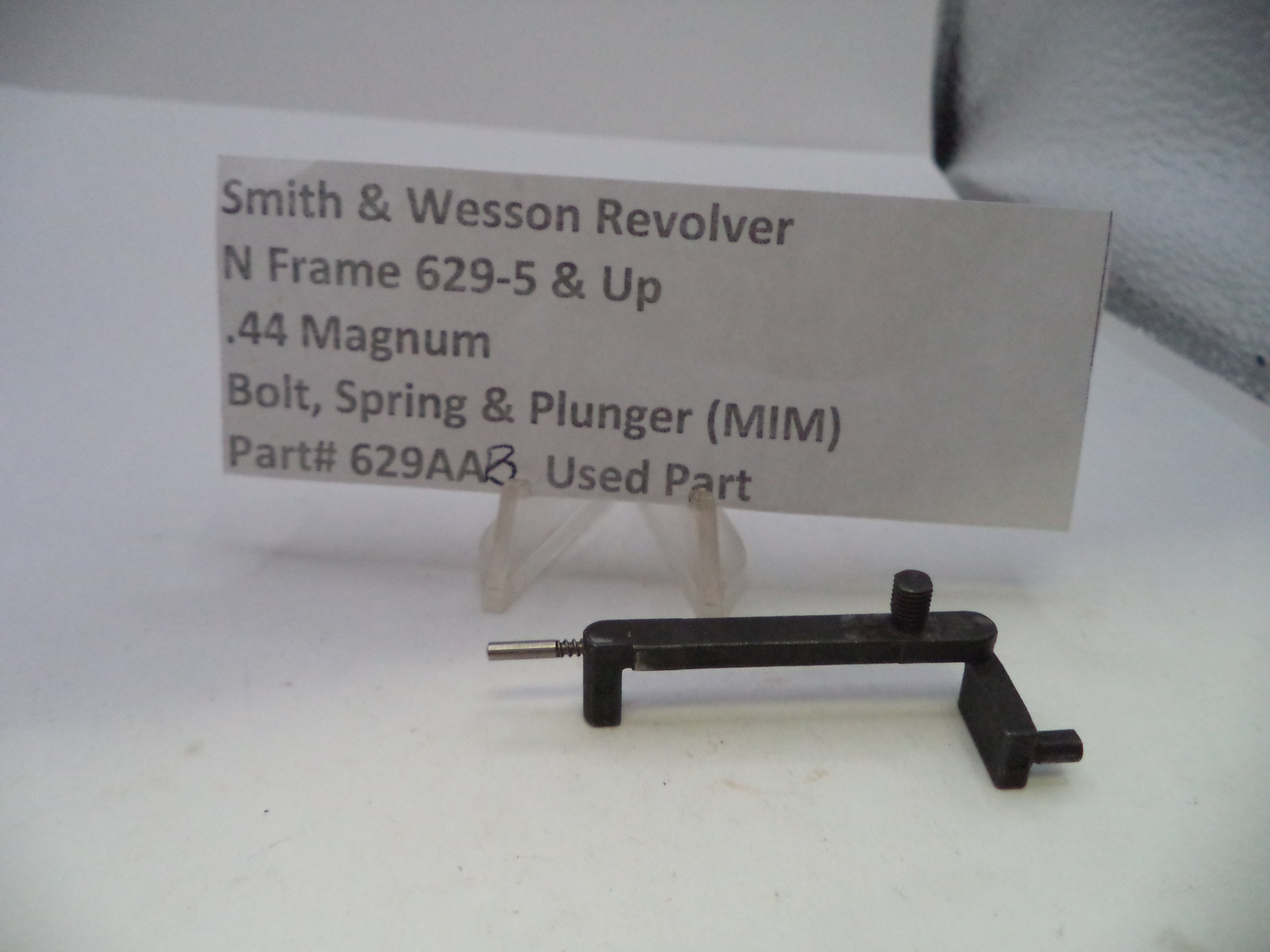

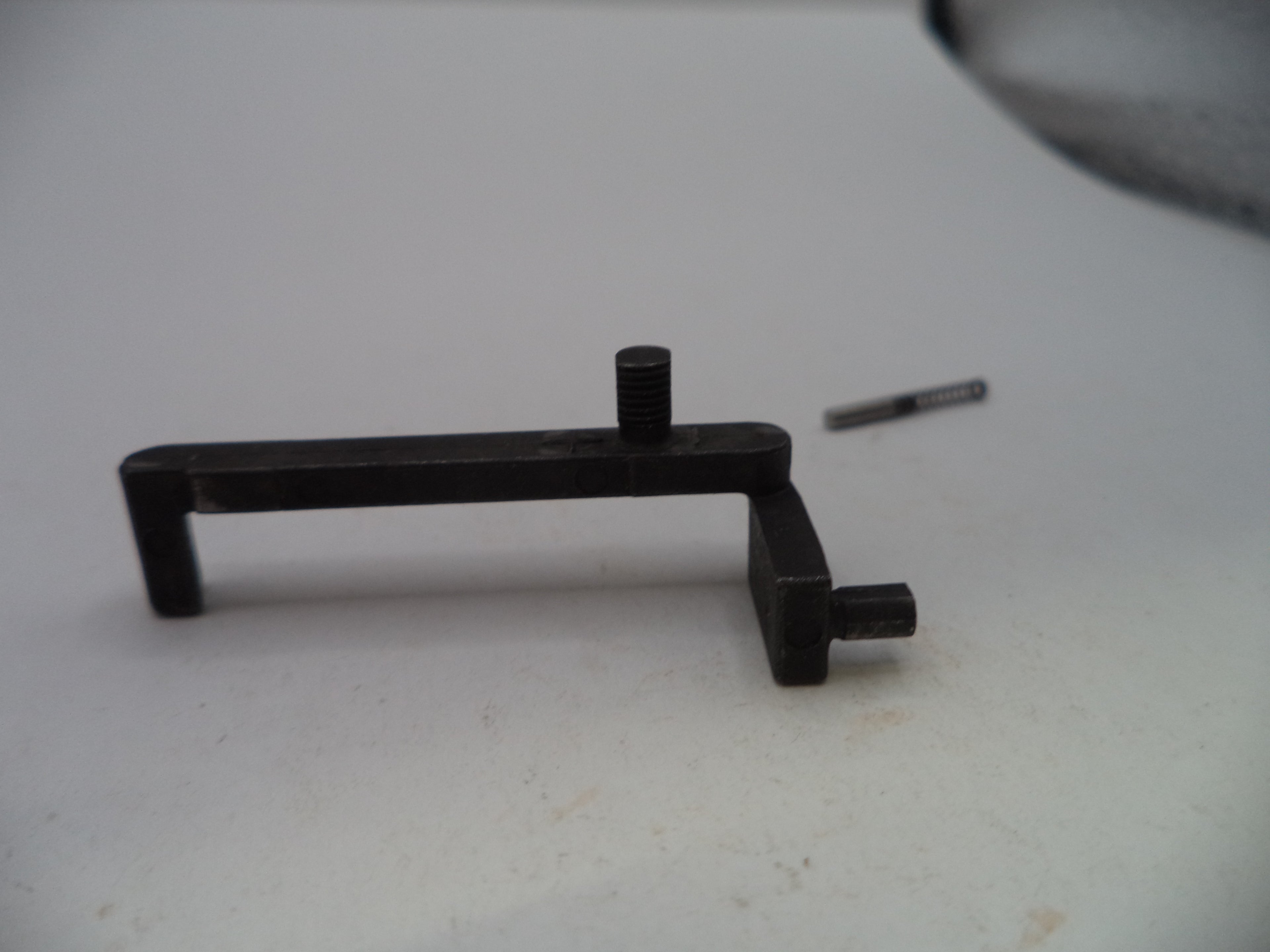

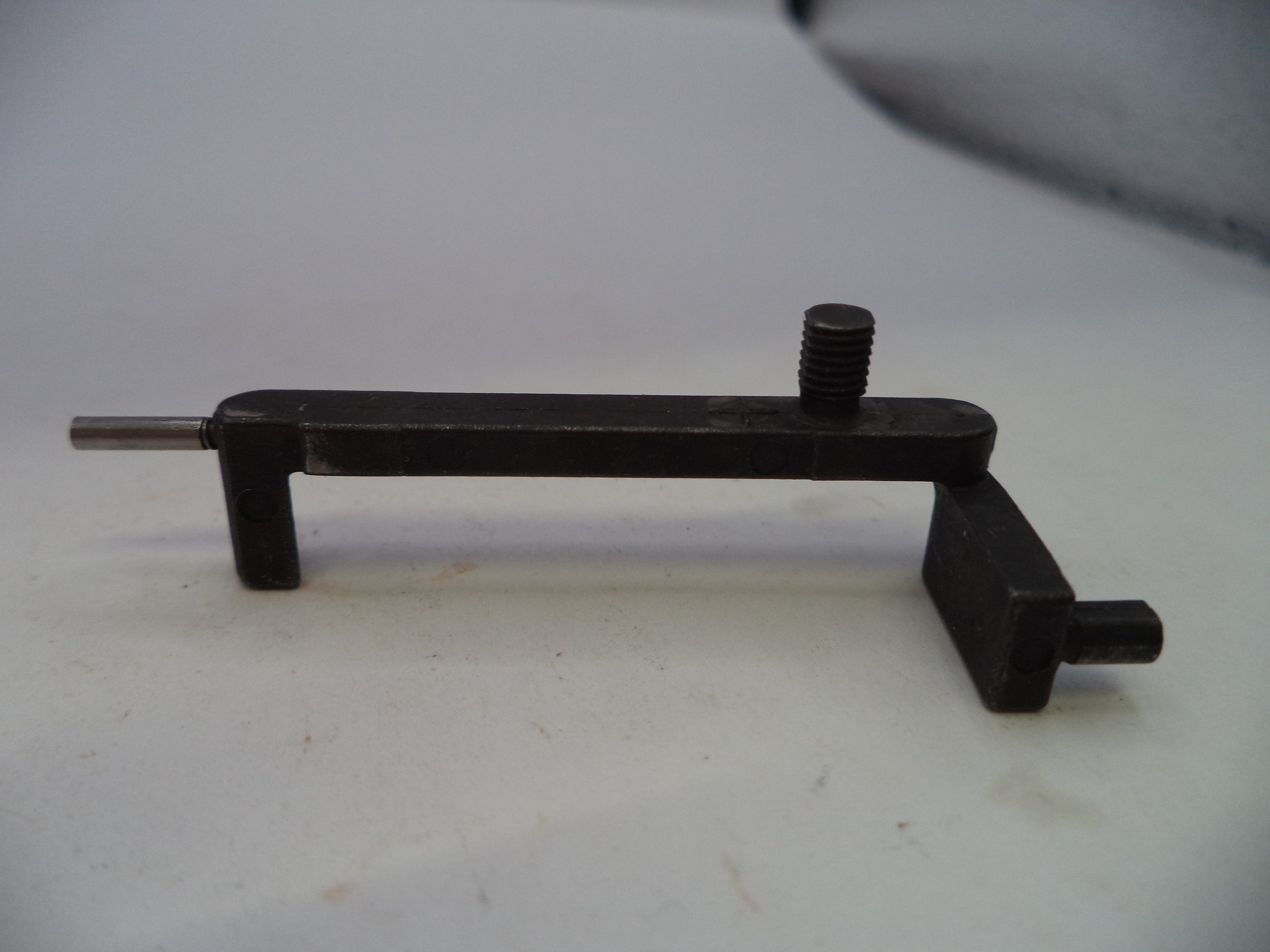

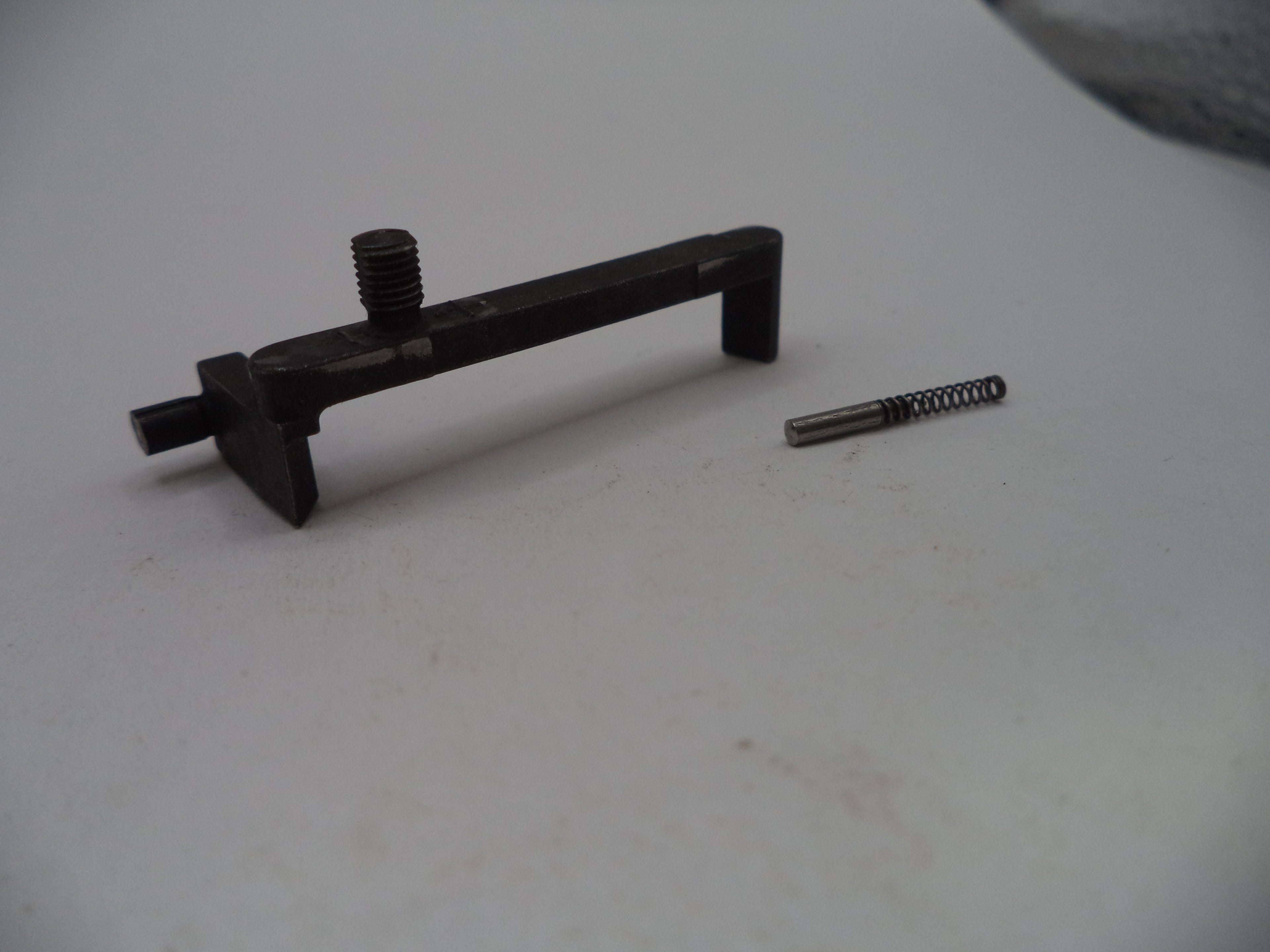

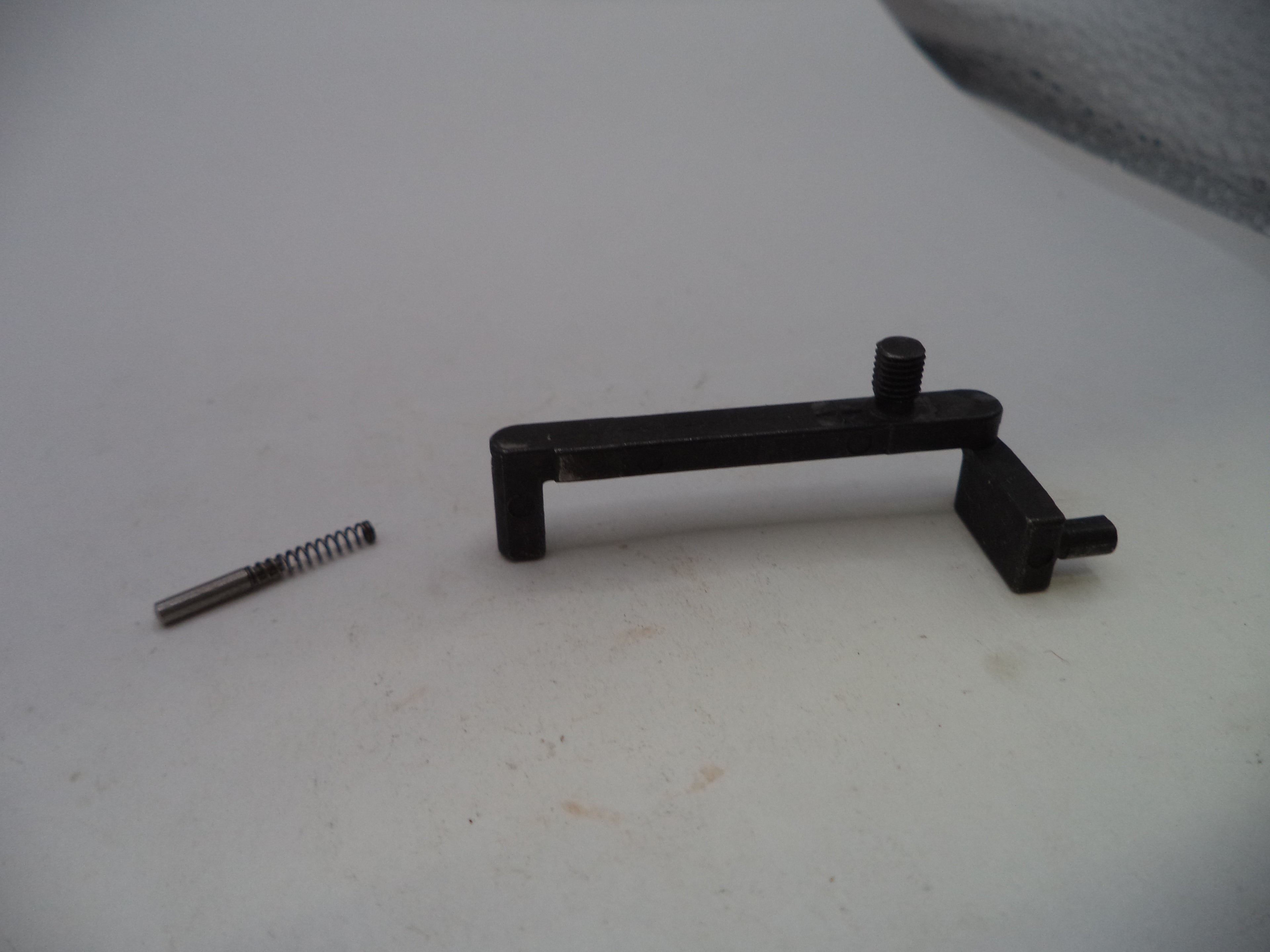

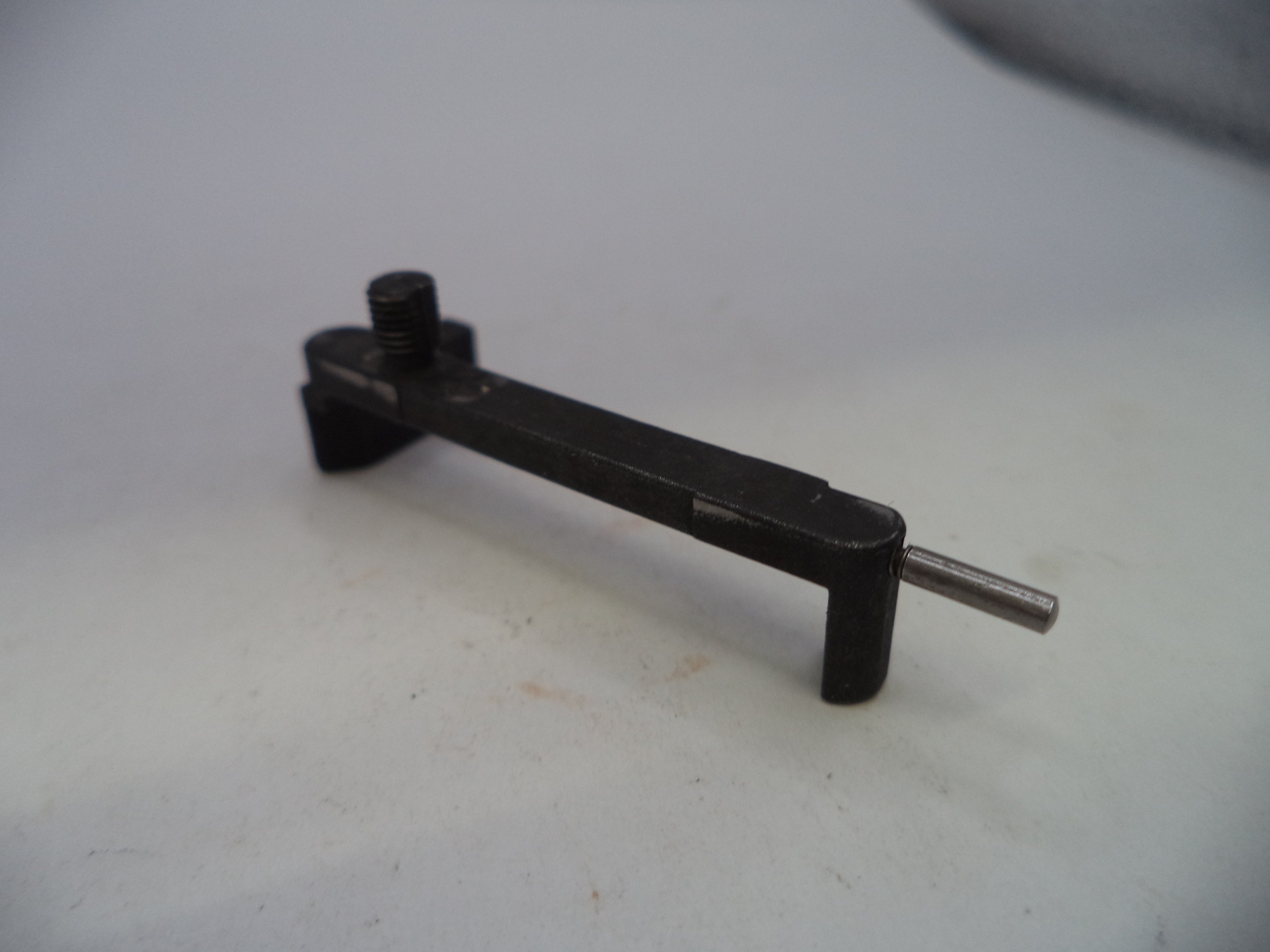

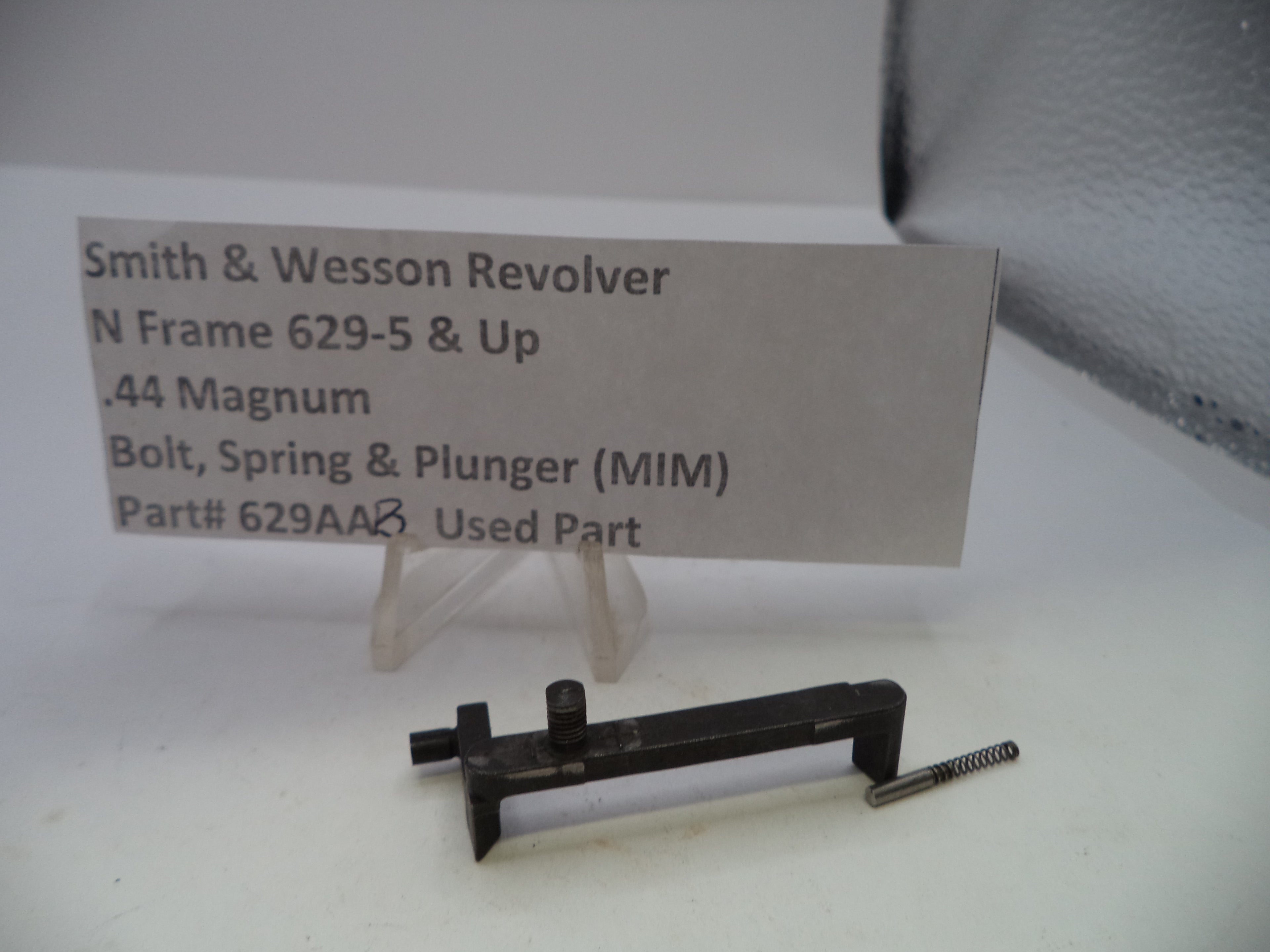

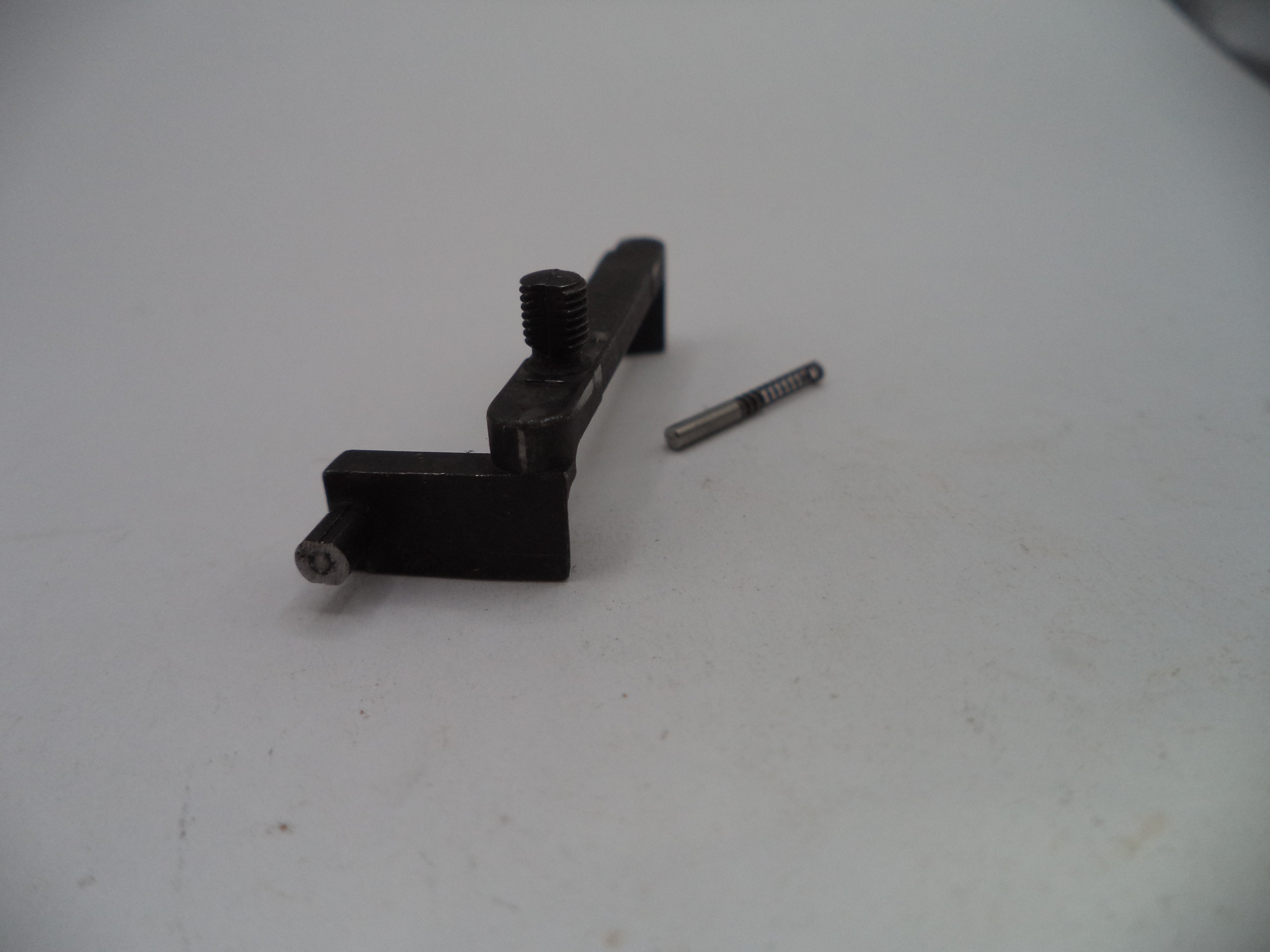

This listing is for the Smith & Wesson N Frame Model 629-5 & Up Bolt, Spring & Plunger (MIM) assembly (Used OEM Part 629AAB) only.

Used factory original Smith & Wesson bolt, spring & plunger assembly for N Frame Model 629-5 and later dash revisions. MIM (Metal Injection Molded) construction to factory original specifications. The bolt is the cylinder stop component that locks the cylinder in alignment with the barrel at the moment of firing — a worn or damaged bolt causes cylinder timing issues and misalignment. Removed from a functioning revolver, inspected prior to sale.

Part Details

  • Part Number: 629AAB
  • Includes: Bolt, Spring & Plunger
  • Condition: Used — factory original OEM
  • Manufacturer: Smith & Wesson
  • Construction: MIM (Metal Injection Molded)
  • Frame: N Frame
  • Caliber: .44 Magnum

Model Compatibility

Make Model Dash Caliber Compatible
Smith & Wesson Model 629 629-5, 629-6, 629-7, 629-8, 629-9, 629-10 and later .44 Magnum ✓ Yes — MIM era
Smith & Wesson Model 629 629-4 and earlier .44 Magnum ✗ No — pre-MIM, different part required

This part is specific to Model 629-5 and later (MIM era). Verify your dash number before ordering. To find your dash number, open the cylinder and look at the frame behind the yoke.

Installation Note

Gunsmith Recommended: Bolt replacement requires side plate removal and action disassembly. Fitting, timing verification, and function testing by a qualified gunsmith is strongly recommended.
