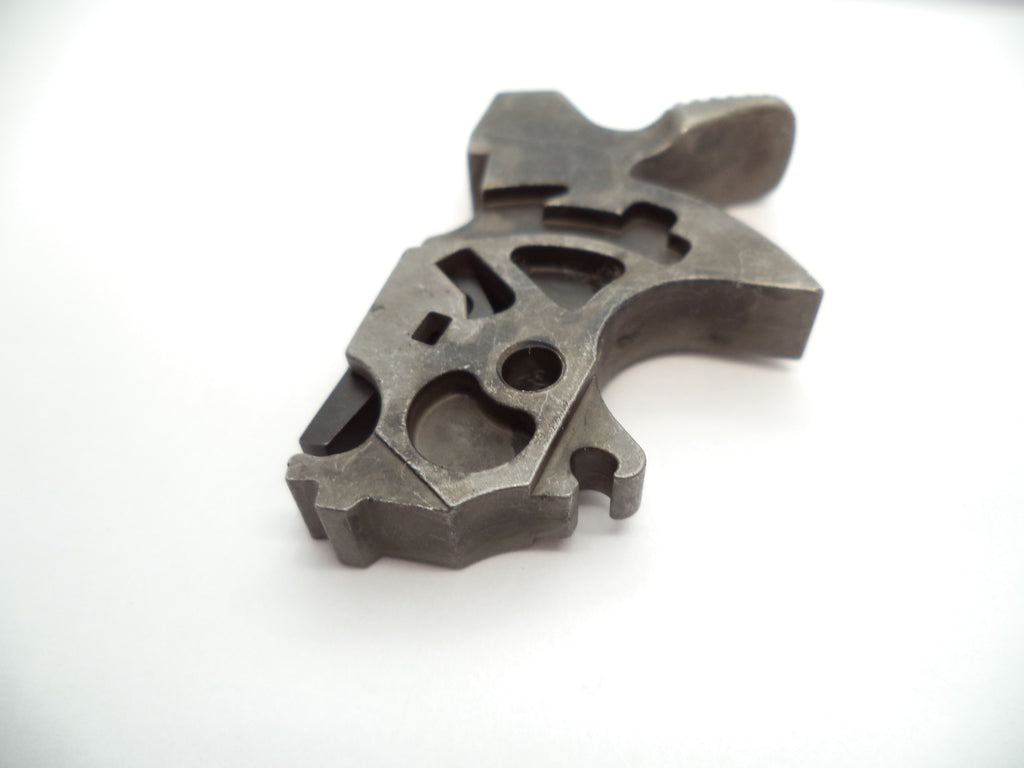

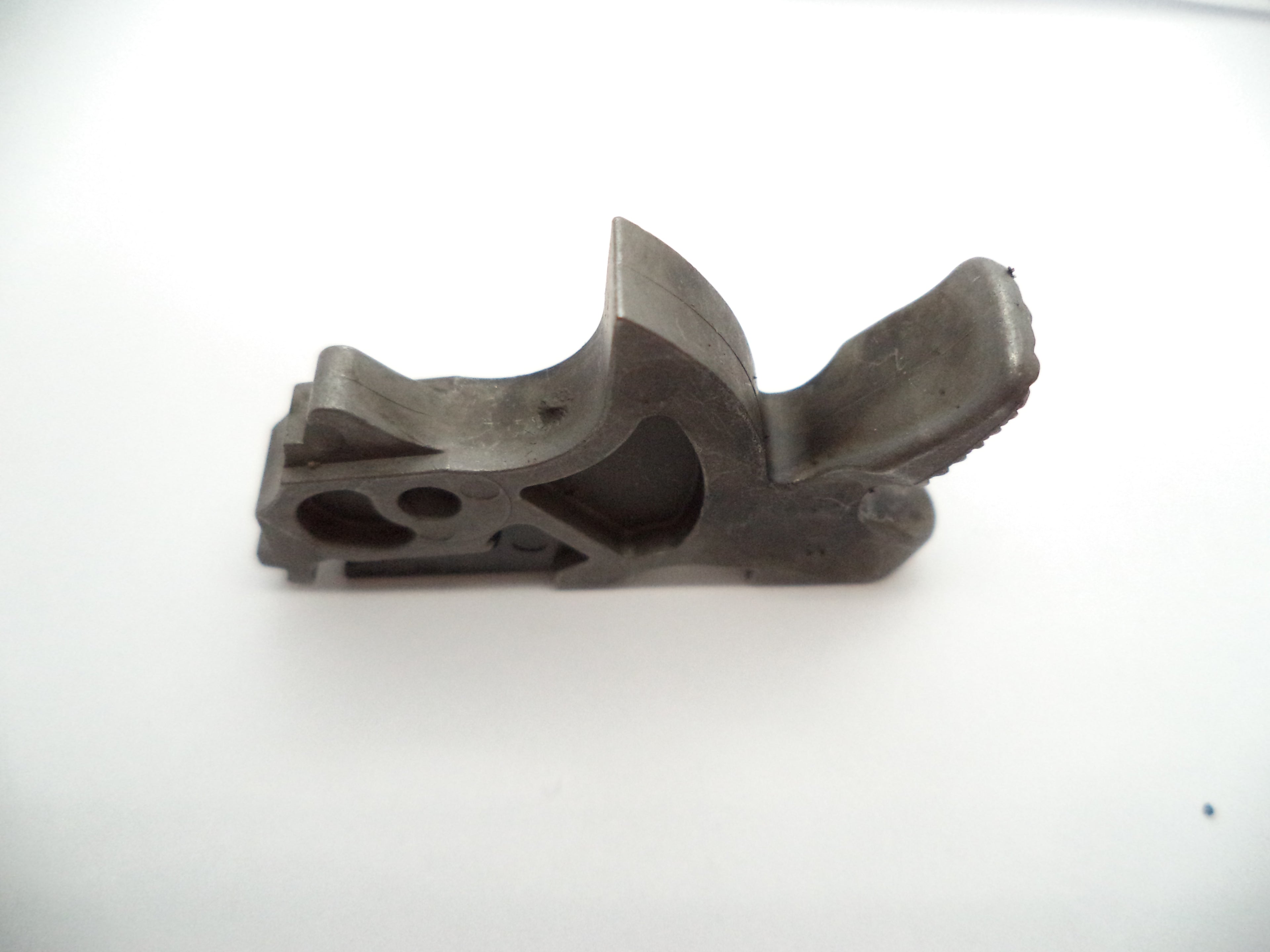

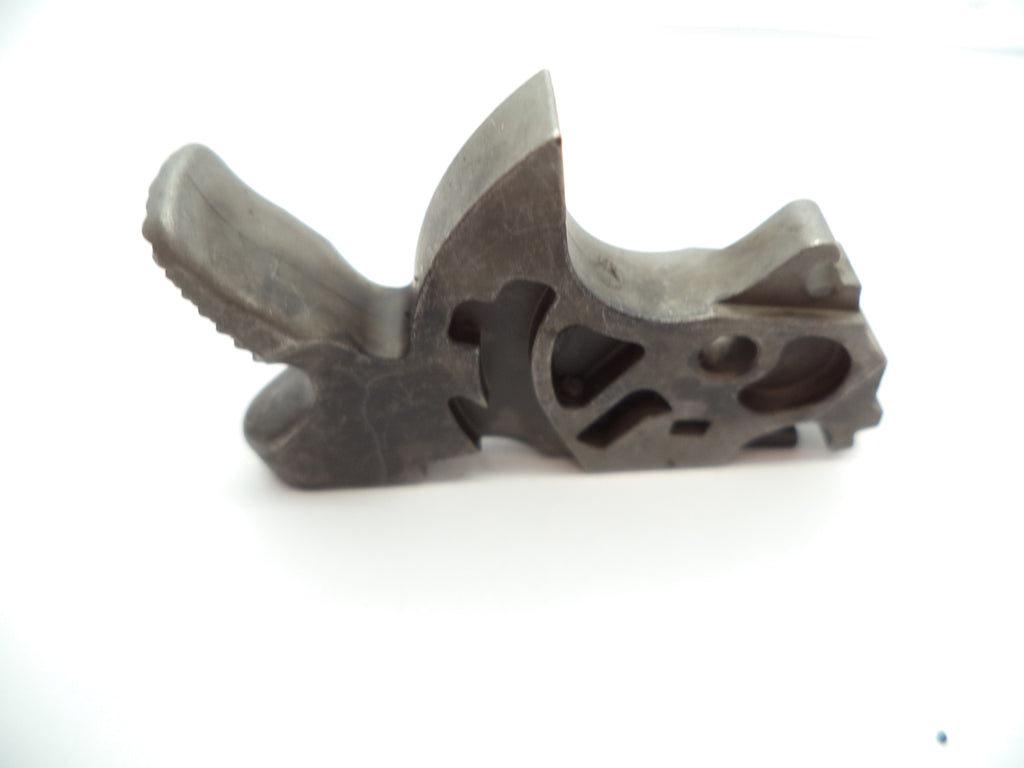

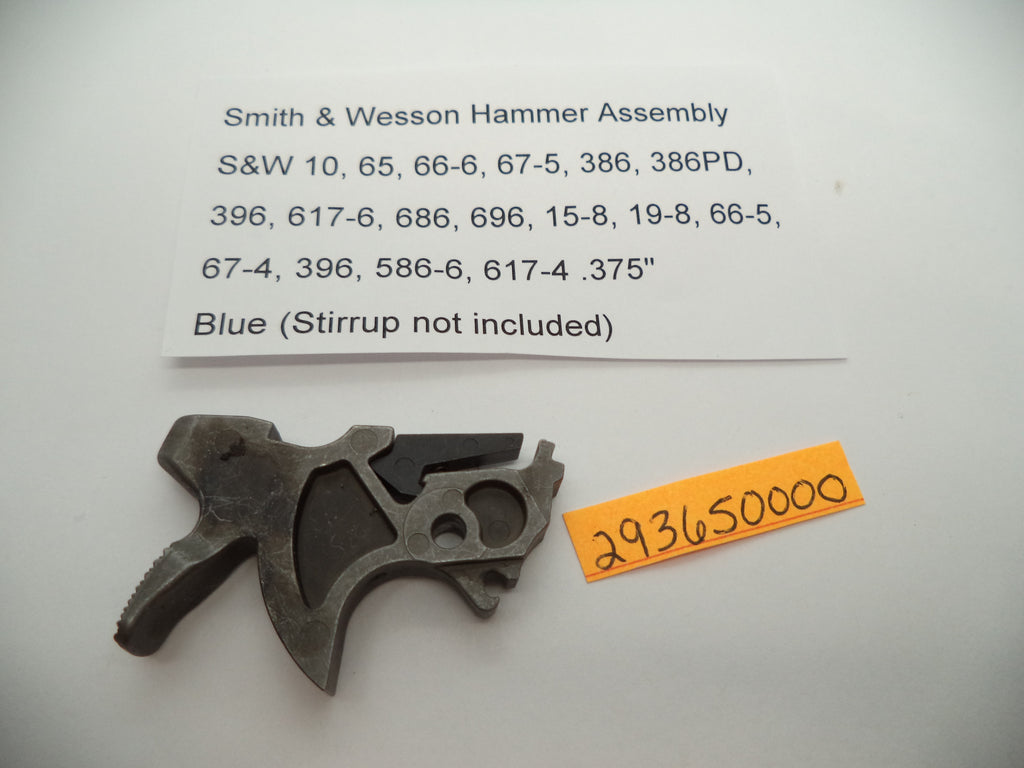

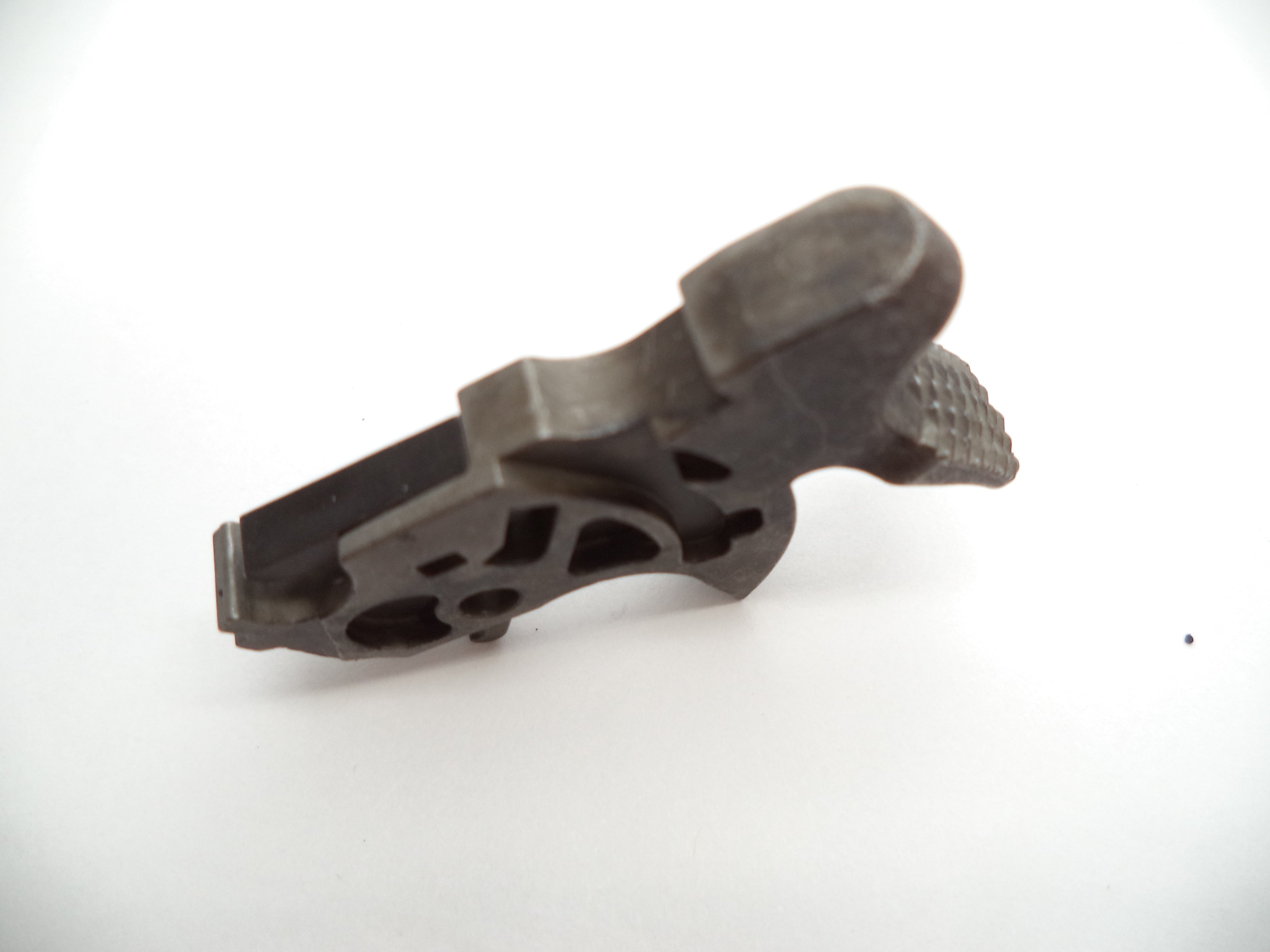

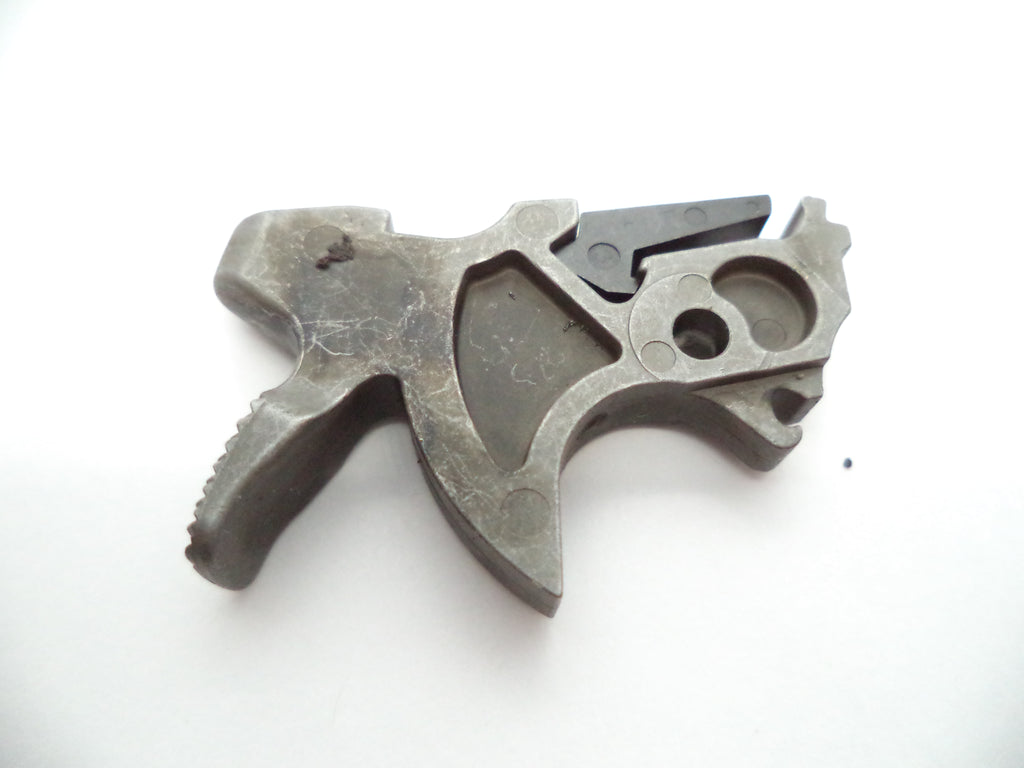

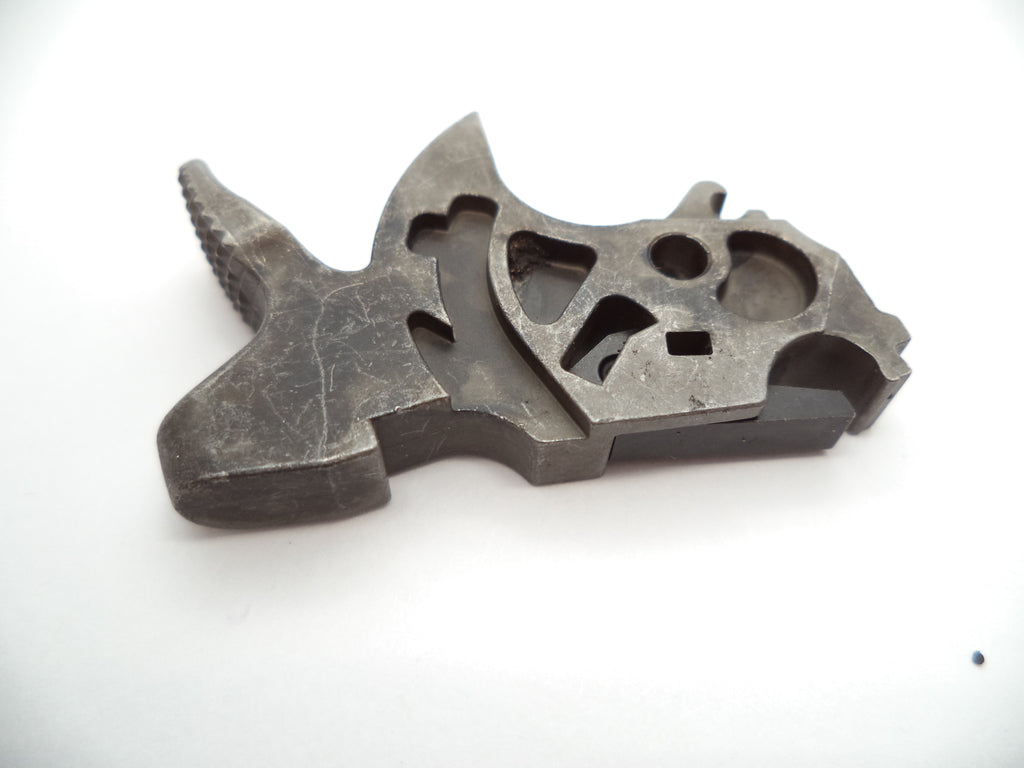

Smith & Wesson K/L Frame Hammer Assembly .375" MIM New Style Key Lock - 293650000

Smith & Wesson K/L Frame Hammer Assembly – Factory OEM Replacement

Genuine factory-new Smith & Wesson hammer assembly for K Frame and L Frame revolvers equipped with the internal key lock. Manufactured using MIM (Metal Injection Molded) technology for precise tolerances and long-term durability. This is the new-style hammer — not compatible with pre-lock or older-style frames.

Part Specifications

• Part Number: 293650000
• Width: .375 inches
• Type: MIM (Metal Injection Molded) – New Style
• Feature: For revolvers with internal key lock
• Condition: Factory new, genuine OEM
• Frame Compatibility: K Frame and L Frame (new style / post-lock)

Compatible Models

This hammer assembly is compatible with the following Smith & Wesson revolver models:

• K Frame: Model 10, Model 15-8, Model 19-8, Model 65, Model 66-5, Model 66-6, Model 67-4, Model 67-5, Model 617-4, Model 617-6
• L Frame: Model 386, Model 386PD, Model 396, Model 586-6, Model 686, Model 696

Note: Compatible with new-style (post-lock) K and L Frame revolvers only. Not compatible with pre-lock or older-generation models.

Installation

Professional gunsmith installation is required. This part requires disassembly, fitting, and reassembly by a qualified gunsmith. Improper installation may affect function and safety.

How to Identify Your Model

Swing out the cylinder and look behind the yoke on the frame — the model number is stamped there. Model numbers were introduced in 1957–58. If no model number is present, your revolver may be pre-model. Contact us with your serial number and we'll help identify the correct parts.

Questions about compatibility? Contact USA Guns And Gear — we're here to help.
