Smith & Wesson J Frame Cylinder Stop & Spring New Style MIM Used Part 22684U

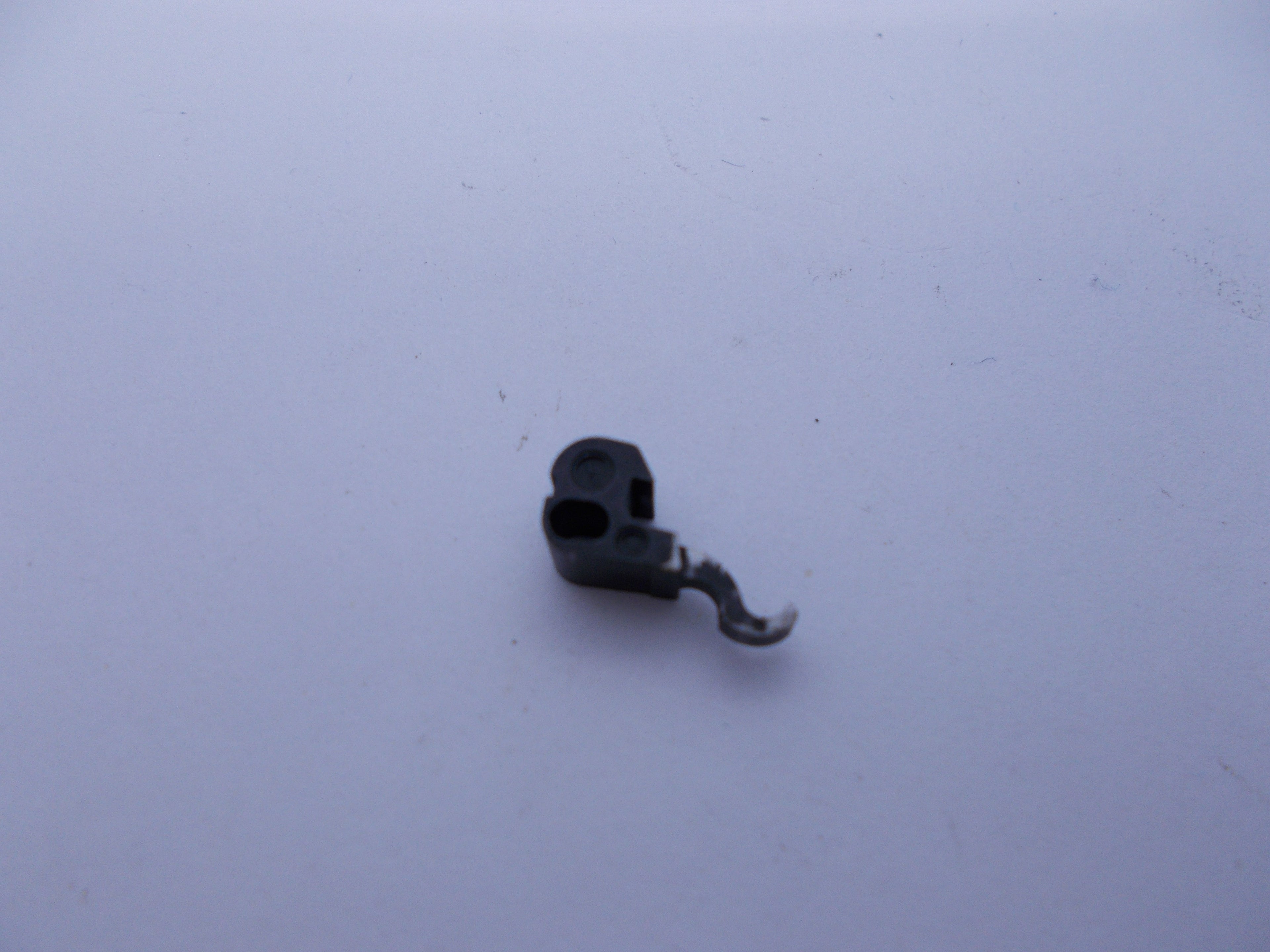

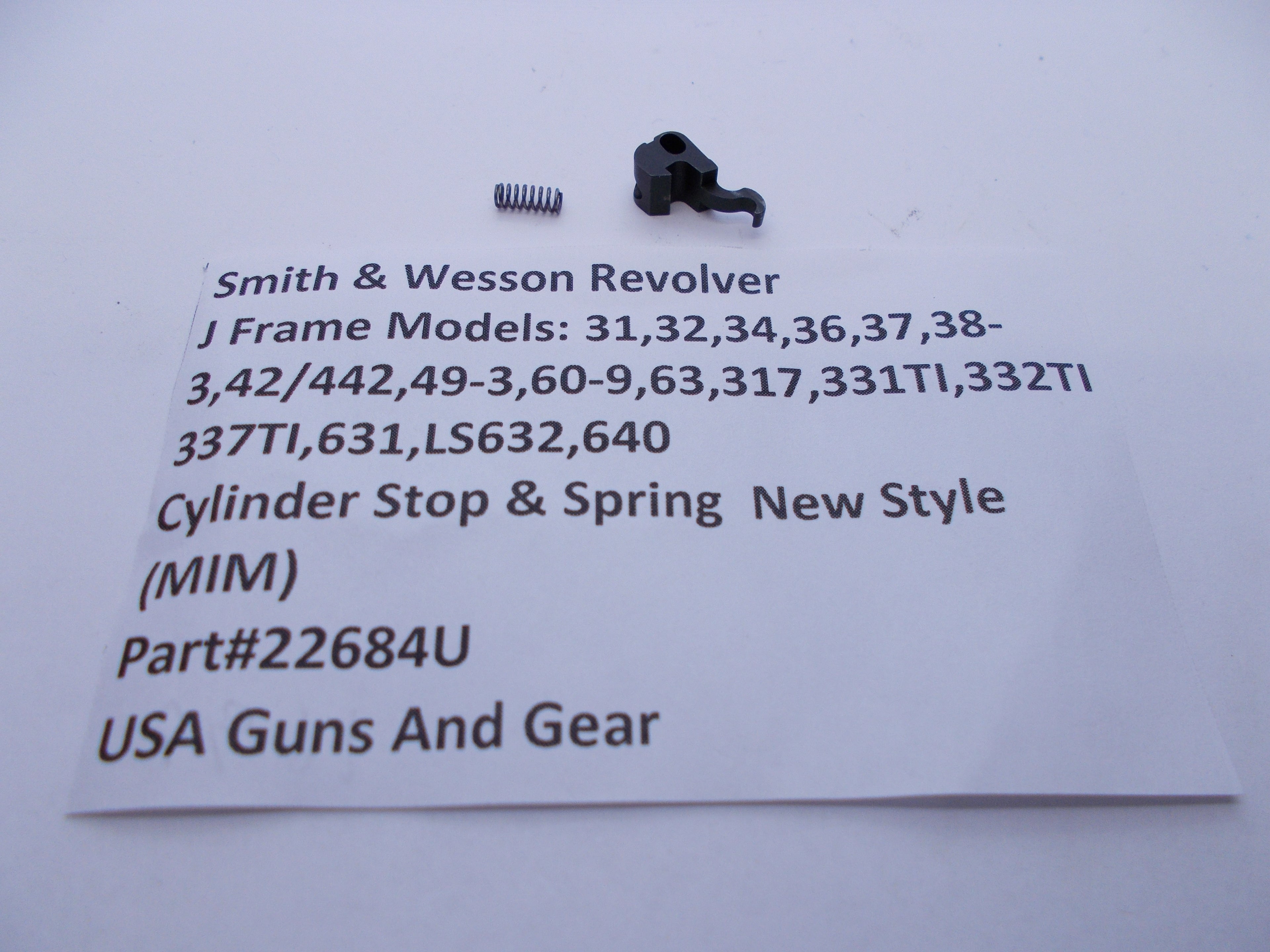

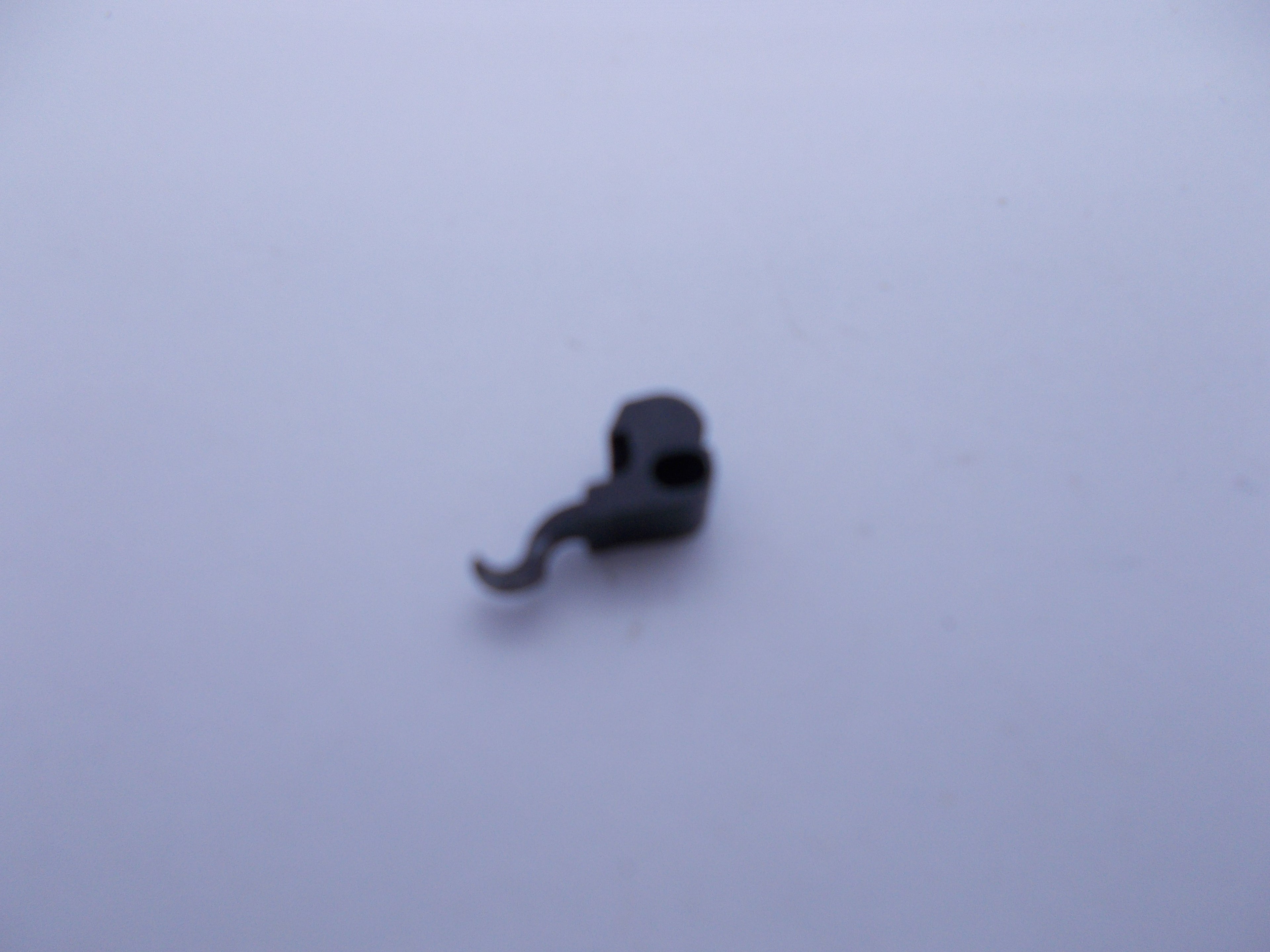

Smith & Wesson J Frame Cylinder Stop & Spring — New Style (MIM), Used

Part Number: 22684U
Condition: Used — Factory Original S&W Part
Frame: J Frame
Style: New Style (MIM — Metal Injection Molded)
Part Type: Cylinder Stop & Spring

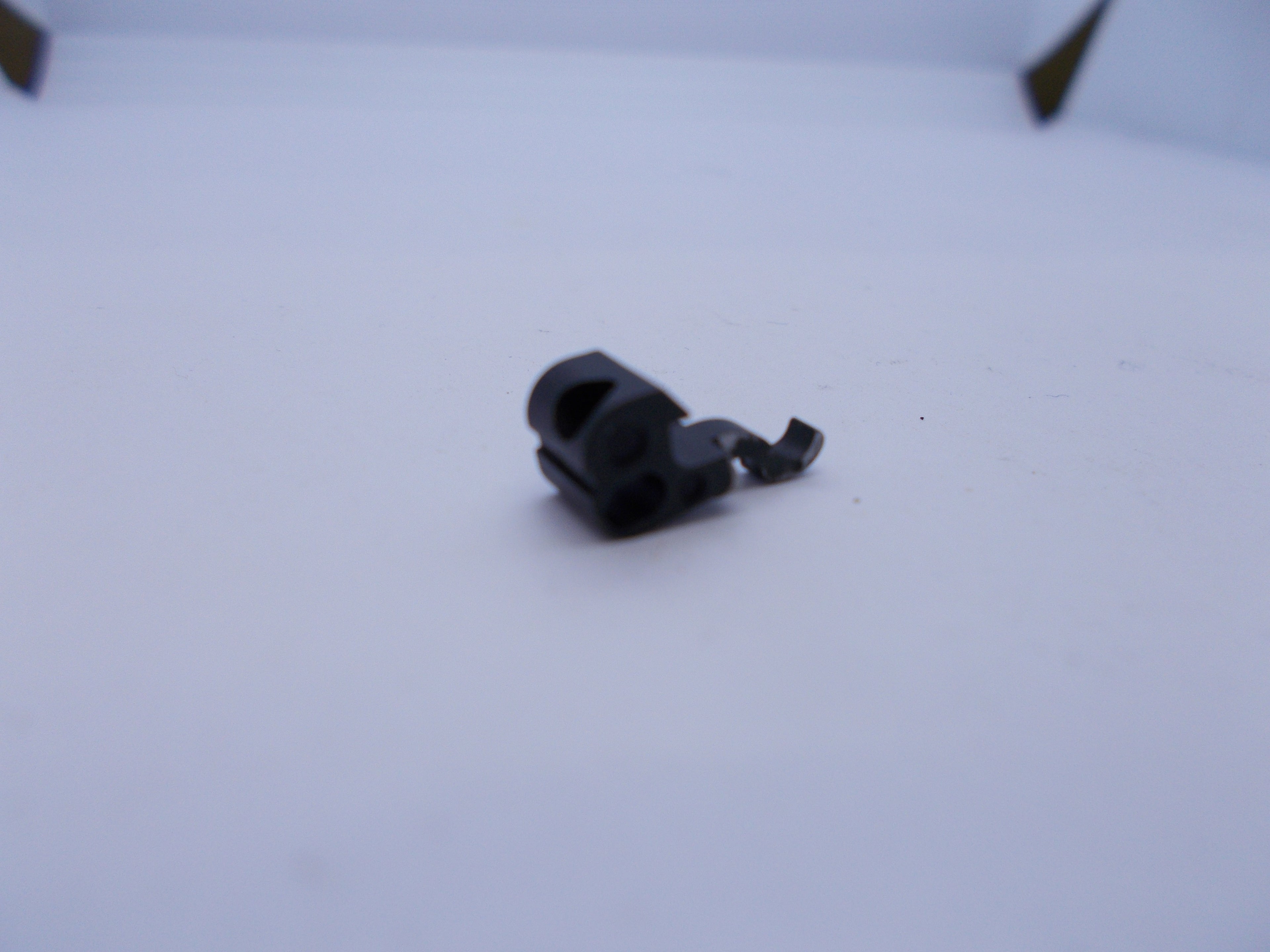

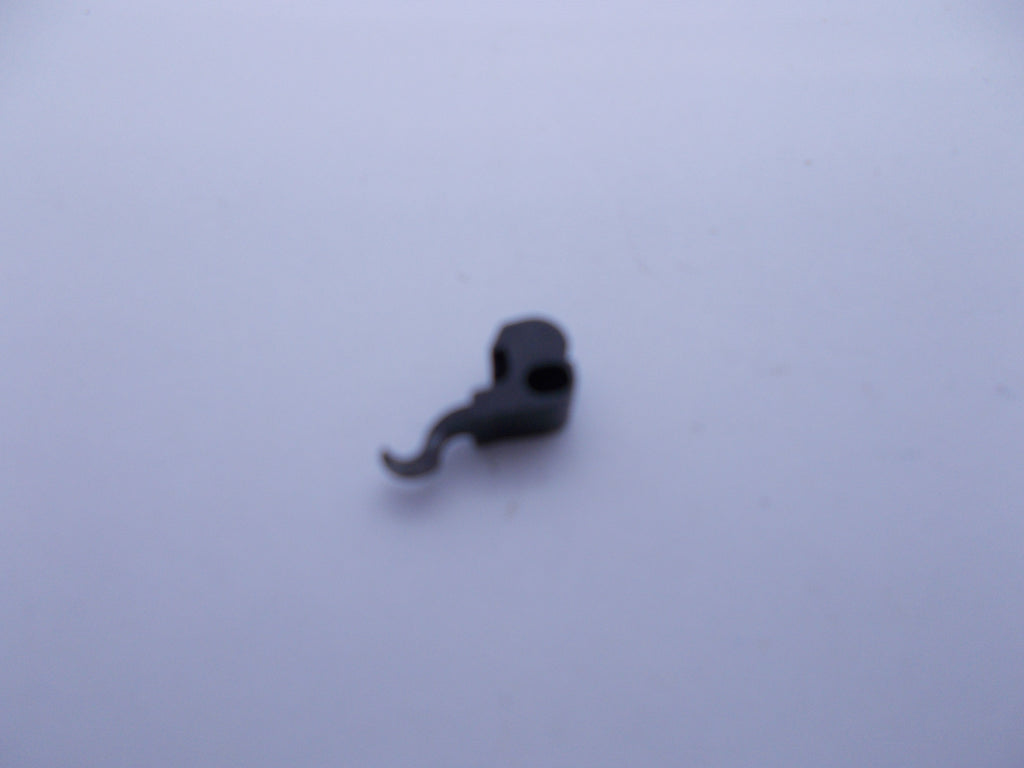

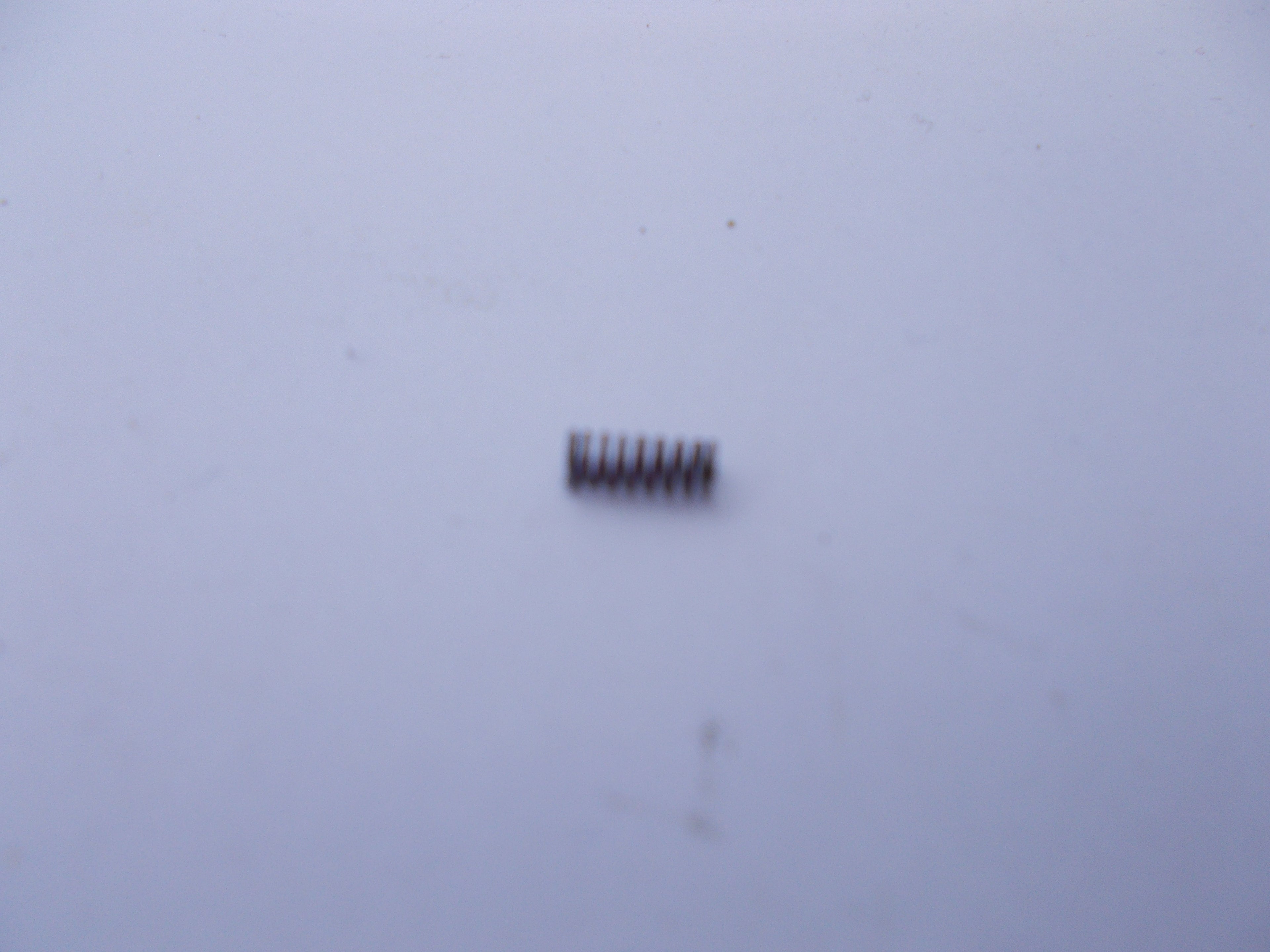

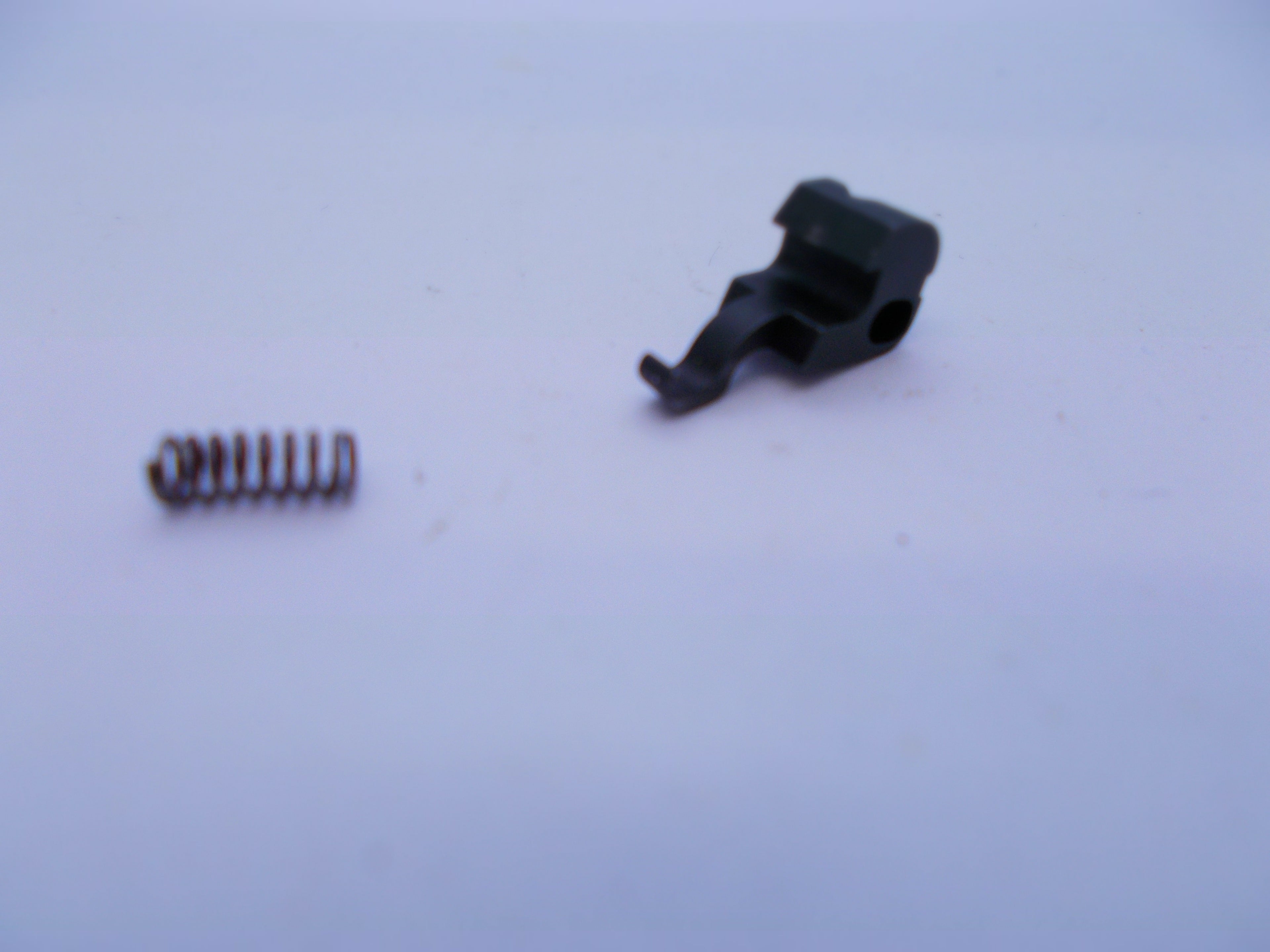

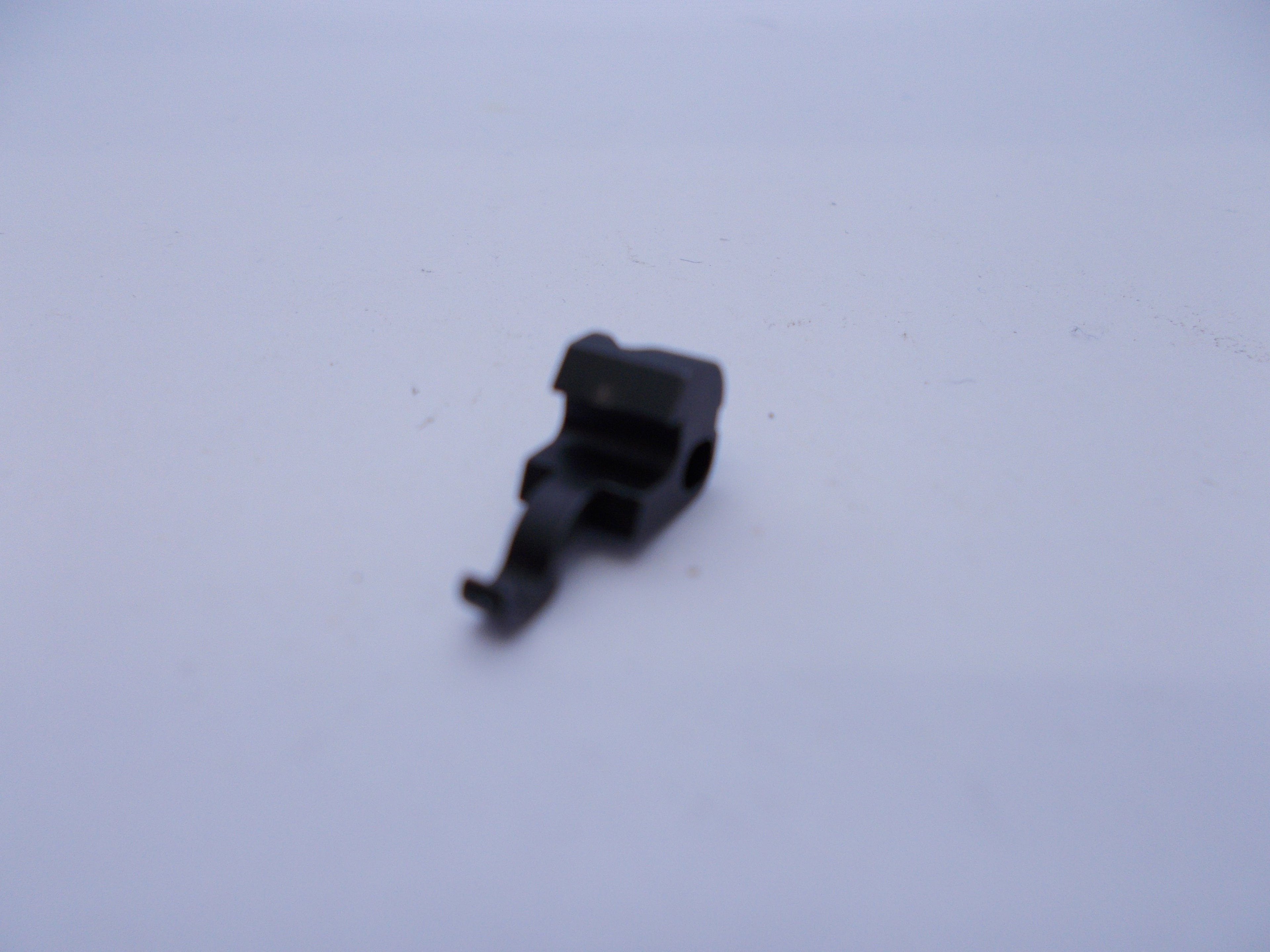

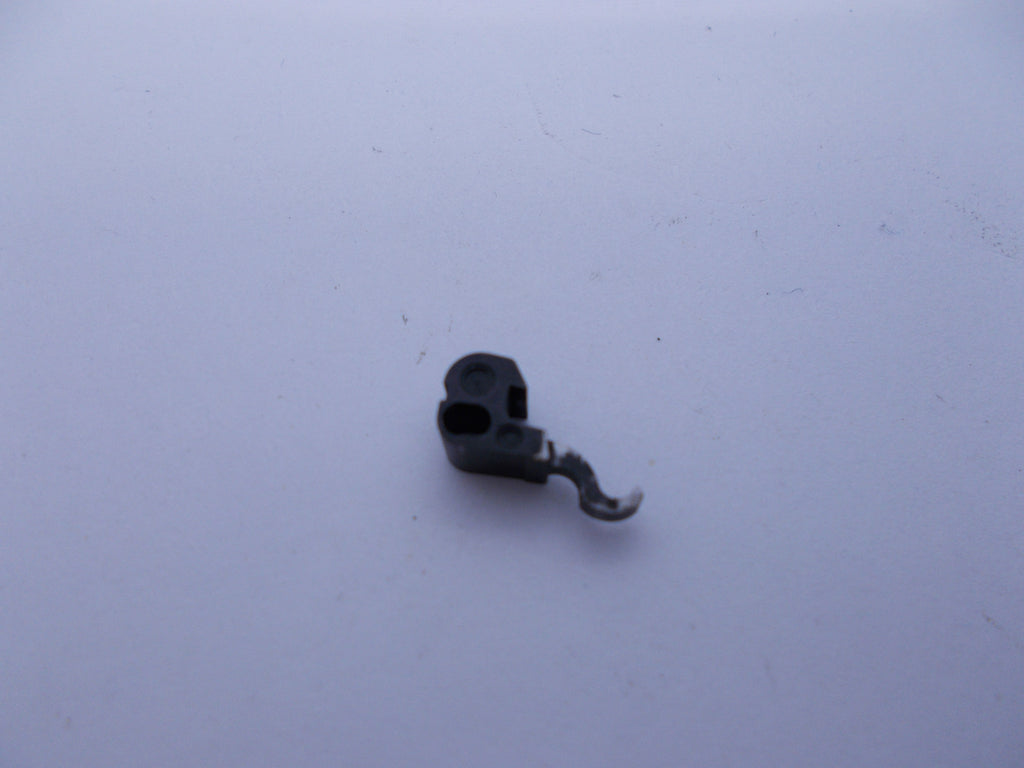

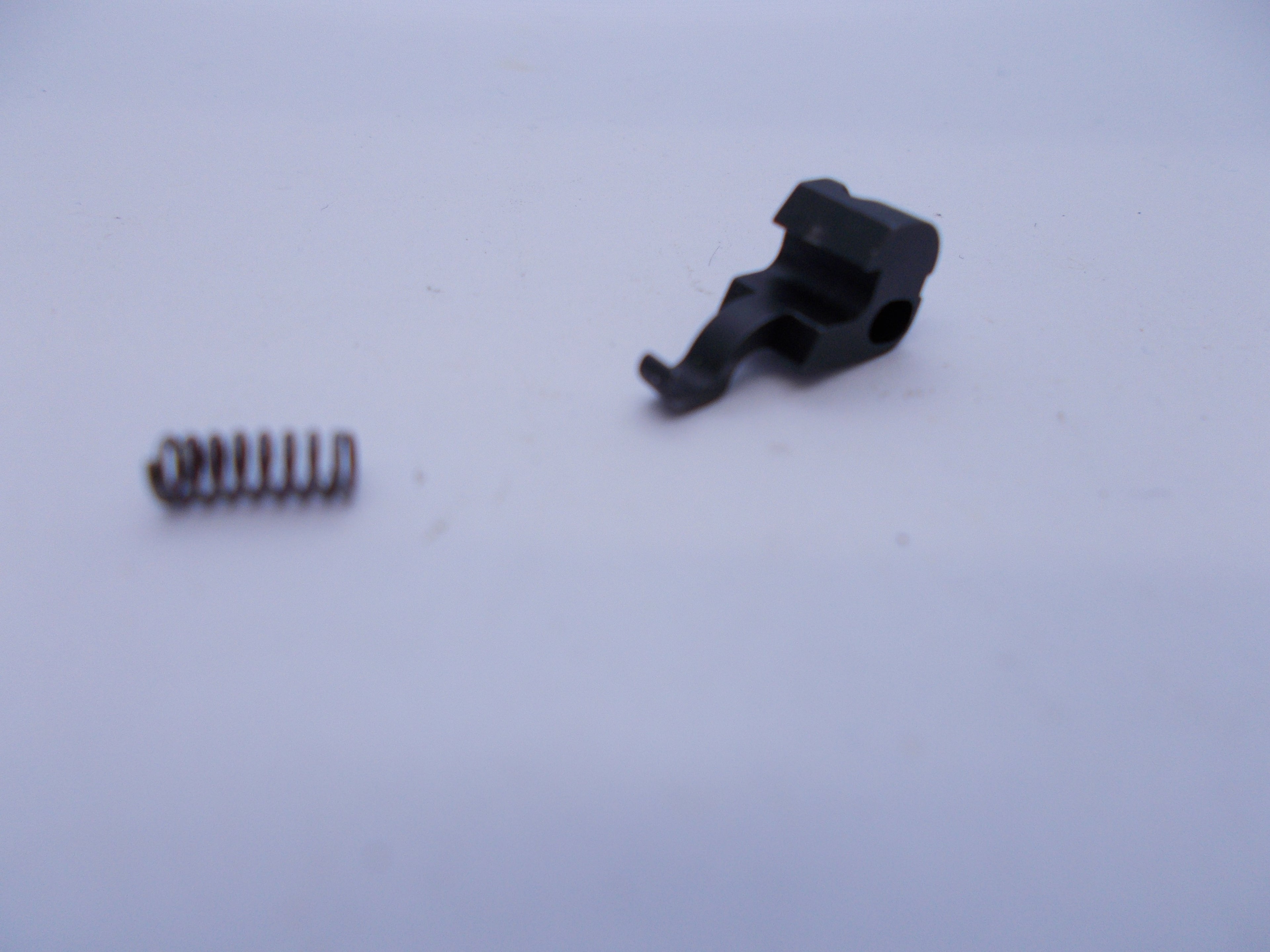

This is a used, factory original Smith & Wesson cylinder stop and spring for J Frame revolvers (new style MIM production). The cylinder stop engages the cylinder notches to lock the cylinder in alignment with the barrel at the moment of firing. A worn or broken cylinder stop will cause cylinder timing issues and prevent the revolver from firing safely. This MIM-style part fits the wide range of new-style J Frame models listed below.

Compatible Models

• Models 31, 32, 34, 36, 37, 38, 42, 49, 60, 63
• Models 317, 331, 332, 337, 337PD, 340, 340PD, 342, 342PD
• Models 351PD, 360, 360PD, 431PD, 432PD
• Models 442, 631, 632, 640, 642, 649, 650, 651, 940

Note: Fits new-style (MIM) J Frame models only. Not compatible with pre-MIM J Frame variants. Verify your model number by swinging out the cylinder and checking behind the yoke on the frame.

This listing is for the cylinder stop and spring only. Installation by a qualified gunsmith is recommended.
