Smith & Wesson Model 686 L Frame Cylinder Stop & Spring .357 Magnum, Part# 6865
$12.99

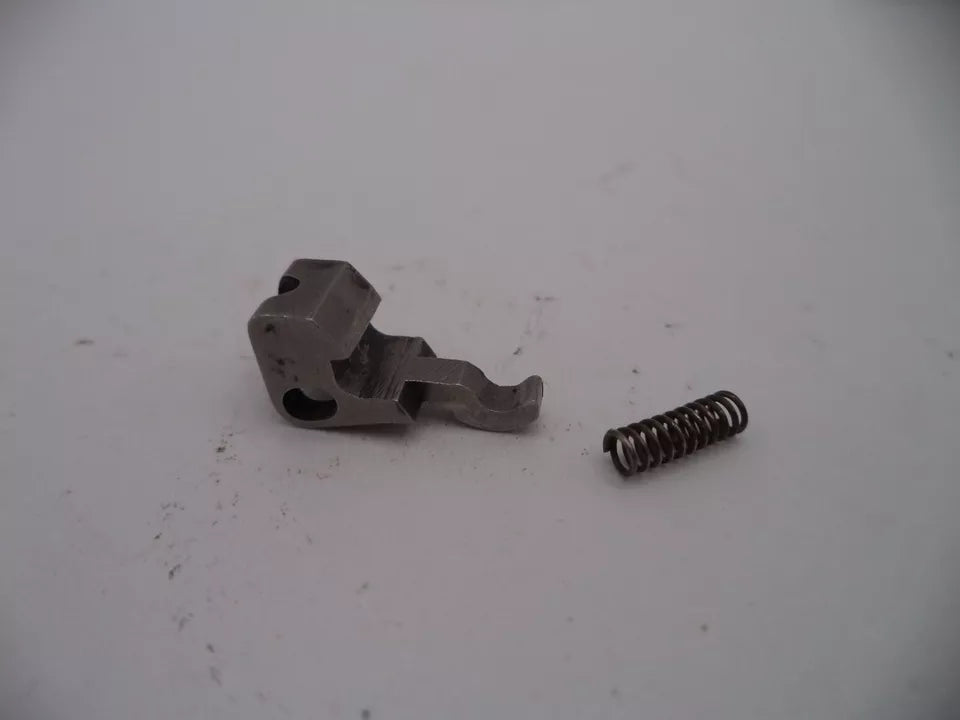

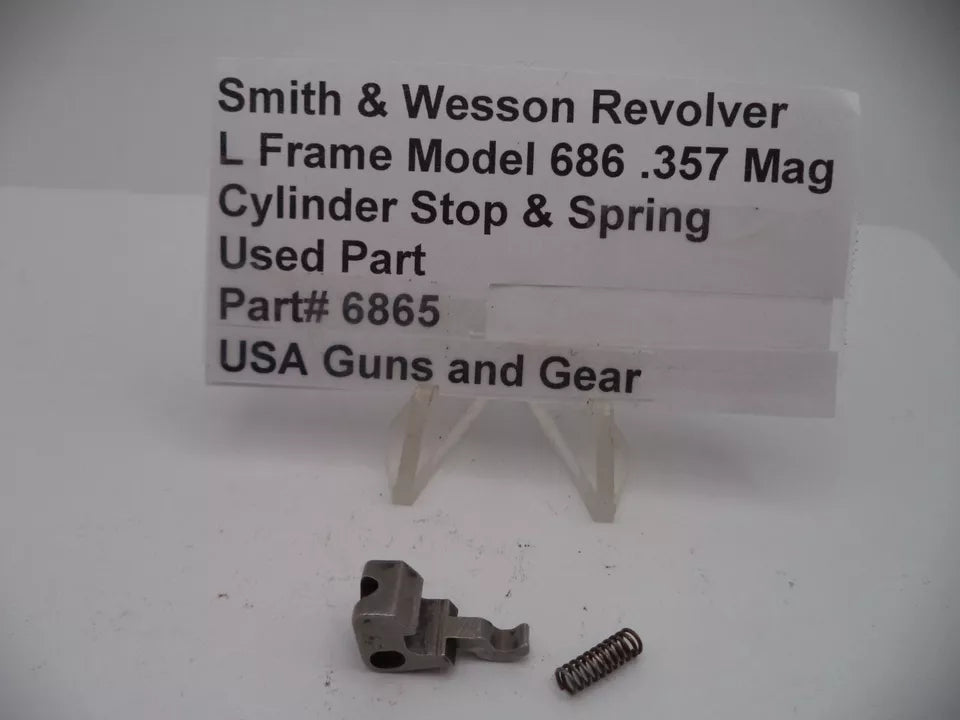

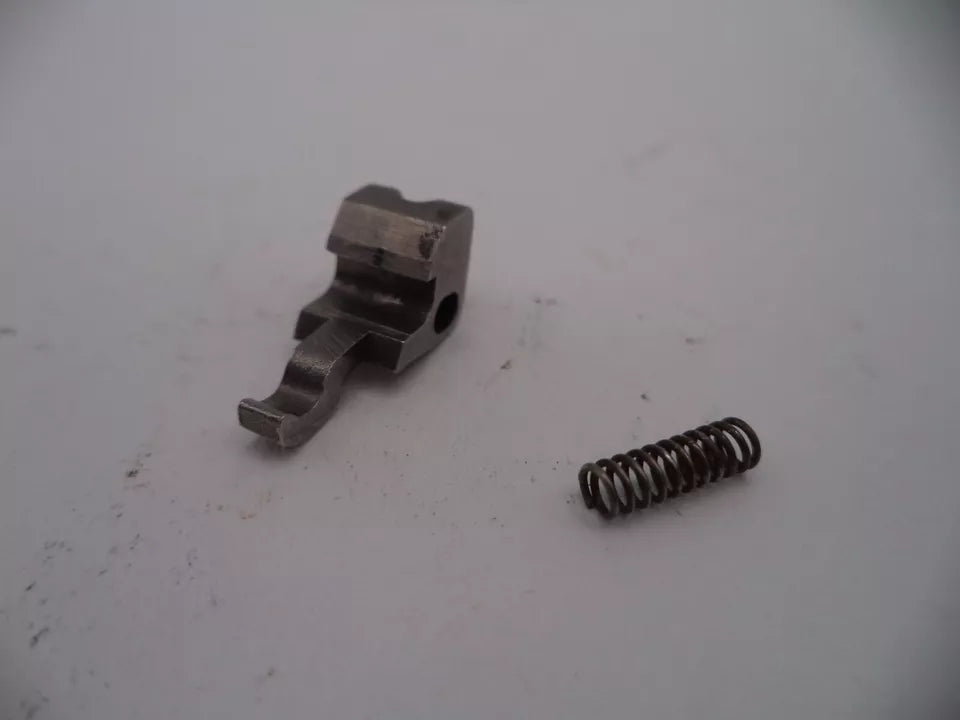

Smith & Wesson Model 686 Cylinder Stop & Spring – Part# 6865
This is a genuine factory Smith & Wesson cylinder stop and spring set for the L Frame Model 686 revolver. An old-style used part in serviceable condition — a cost-effective solution for restoring proper cylinder lockup on your 686.
The cylinder stop (also called the cylinder bolt) is the component that locks the cylinder in alignment with the barrel at the moment of firing. A worn or broken cylinder stop results in poor lockup, cylinder wobble, and potential accuracy or safety issues. Includes the cylinder stop spring.
Part Details
- Part Number: 6865
- Part Name: Cylinder Stop & Spring
- Material: Stainless Steel
- Condition: Used, factory original (old style)
- Frame: L Frame
- Includes: Cylinder stop + cylinder stop spring
- Function: Locks cylinder in barrel alignment at moment of firing
Model Compatibility
| Model | Caliber | Frame | Compatible |
|---|---|---|---|
| Model 686 | .357 Magnum / .38 Special | L Frame | ✅ Yes |
| Model 686 Plus | .357 Magnum | L Frame | ⚠️ Verify fitment |
| Model 581 | .357 Magnum | L Frame | ⚠️ Verify fitment |
| Model 586 | .357 Magnum | L Frame | ⚠️ Verify fitment |
| Model 681 | .357 Magnum | L Frame | ⚠️ Verify fitment |
| Model 19 / 66 | .357 Magnum | K Frame | ❌ Different frame |
| Model 27 / 28 | .357 Magnum | N Frame | ❌ Different frame |
Note: Cylinder stops are frame-specific and not interchangeable between J, K, L, or N Frame revolvers. Always confirm your exact model before ordering. Model numbers are stamped on the frame behind the yoke when the cylinder is swung out. Pre-1957 revolvers may not have a model number — contact us with your serial number for assistance.
Installation
Cylinder stop replacement requires disassembly of the side plate and lock work. Proper cylinder timing must be verified after installation — we recommend having this part fitted and installed by a qualified gunsmith to ensure safe, reliable lockup.
Questions about fitment? Call or email us — we're happy to help.
