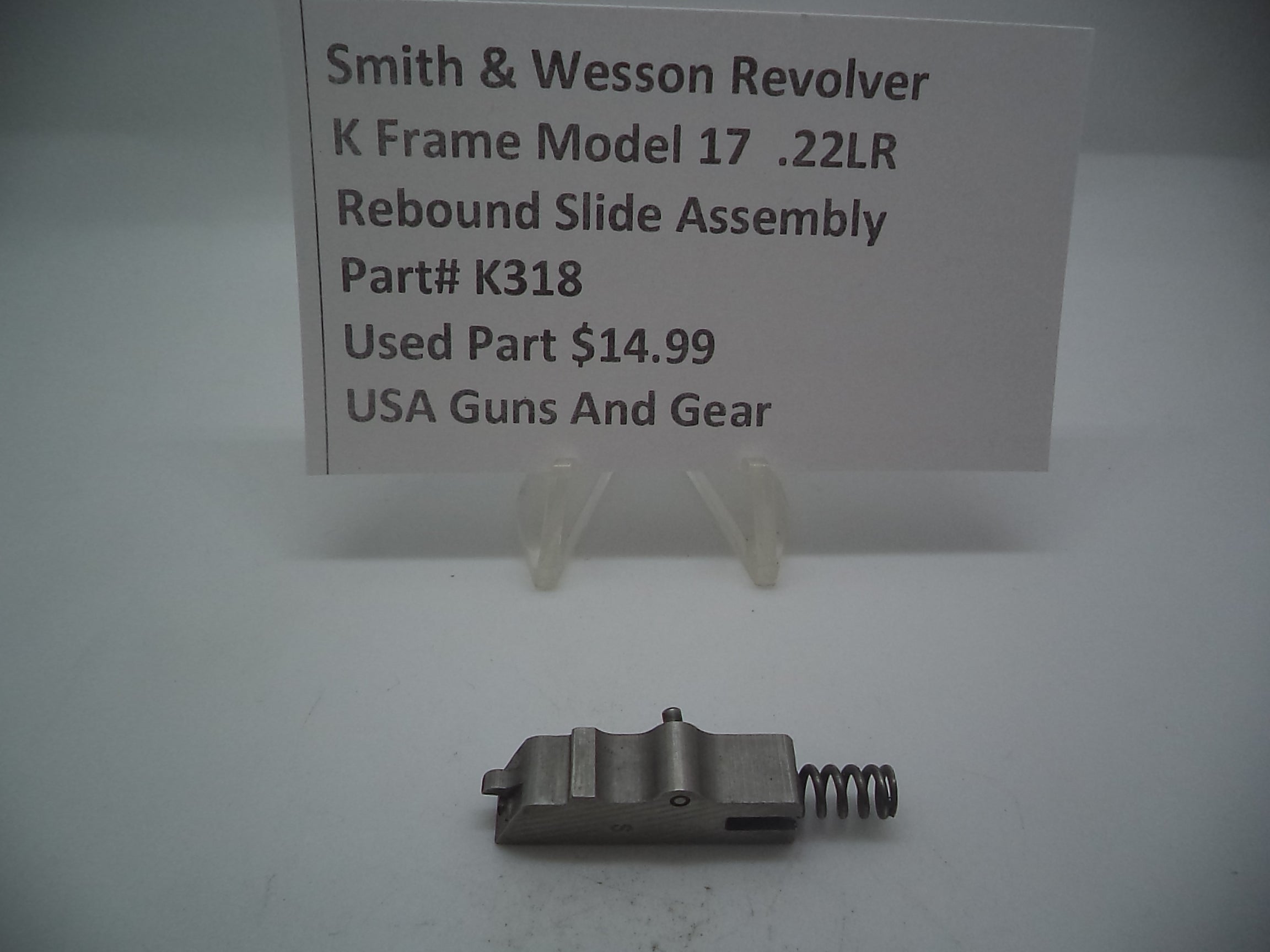

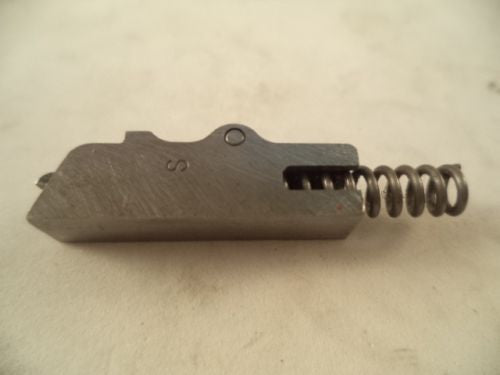

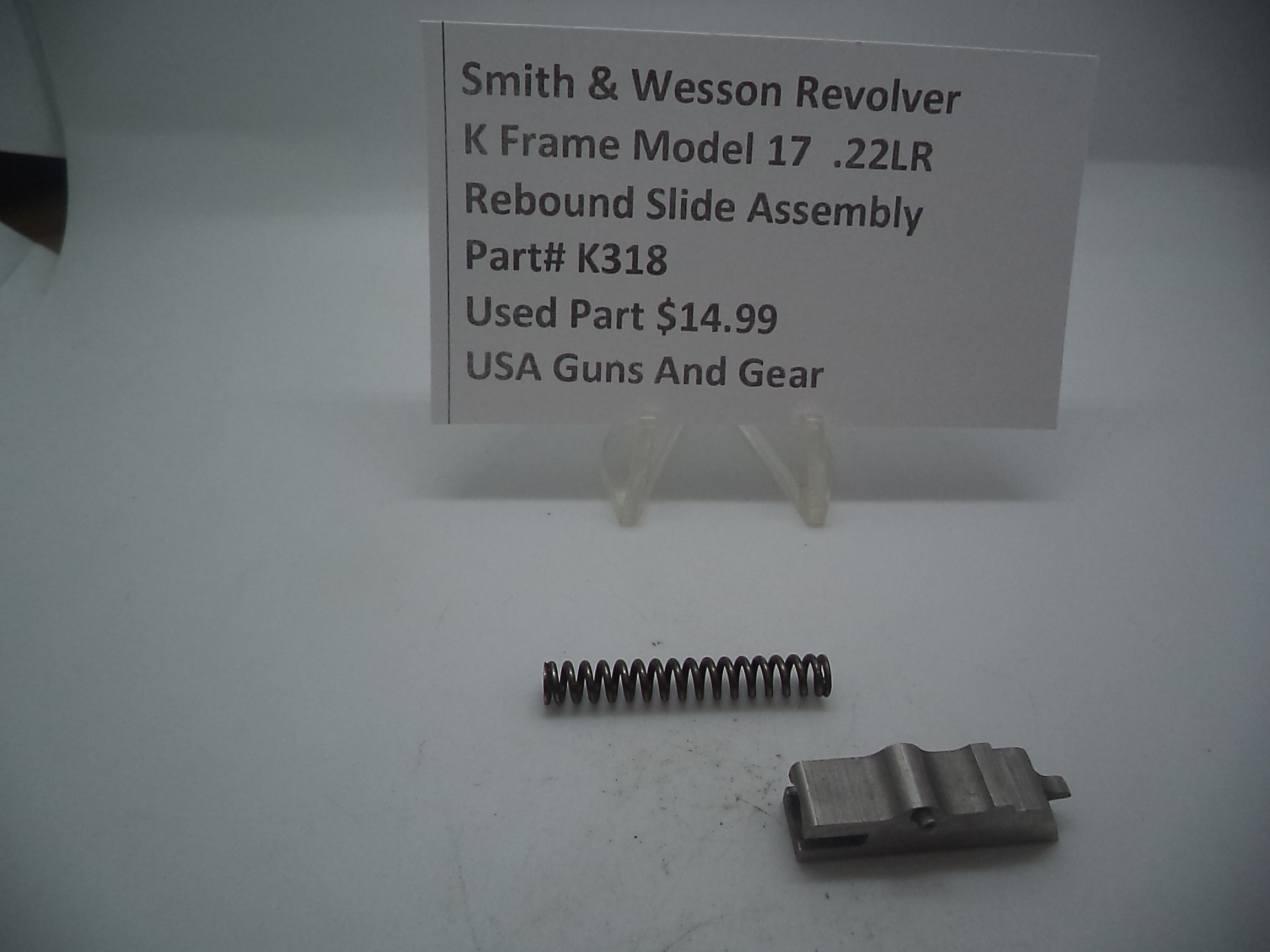

Smith & Wesson K Frame Model 17 Rebound Slide Assembly .22 LR - Used OEM Part K318

Smith & Wesson K Frame Model 17 Rebound Slide Assembly

Part Number: K318
Condition: Used - Good
Frame: K Frame
Model: 17 K-22 Masterpiece
Caliber: .22 LR
Finish: Blued Steel
Includes: Rebound slide and rebound spring
Weight: 1 oz

Product Details

Genuine Smith & Wesson factory rebound slide assembly for the K Frame Model 17 K-22 Masterpiece revolver. This critical action component includes both the rebound slide and rebound spring. The rebound slide controls trigger reset and return, ensuring smooth double-action operation and proper trigger function. Essential for maintaining reliable trigger performance in your classic .22 target revolver.

About the Model 17

The Smith & Wesson Model 17 K-22 Masterpiece is a legendary .22 LR target revolver built on the medium K Frame platform. Introduced in 1931 (originally as the K-22 Outdoorsman, later K-22 Masterpiece), the Model 17 features adjustable sights, a 6-shot cylinder, and is typically available with a 6-inch barrel. The Model 17 is renowned for exceptional accuracy, smooth trigger action, and reliability. It's extremely popular for target shooting, small game hunting, training, and competitive shooting. The .22 LR chambering makes it economical to shoot while maintaining the feel and handling of centerfire K Frame revolvers.

Model 17 vs Model 18

The Model 17 (K-22 Masterpiece) typically features a 6-inch barrel and is optimized for target shooting, while the Model 18 (Combat Masterpiece) usually has a 4-inch barrel. Both share similar internal parts and are built on the same K Frame platform. The Model 17 is particularly popular among competitive shooters and collectors due to its longer sight radius and target-oriented design.

Function & Compatibility

The rebound slide is a critical component in the trigger mechanism. When you pull the trigger, the rebound slide moves forward, allowing the trigger to travel. When you release the trigger, the rebound spring pushes the rebound slide backward, which resets the trigger to its forward position. This assembly is essential for both single-action and double-action operation.

This rebound slide assembly is specifically designed for Smith & Wesson K Frame Model 17 revolvers chambered in .22 LR. It may also fit other K Frame .22 models including the Model 18 - contact us to verify compatibility for your specific revolver.

K Frame .22 Revolvers

The Model 17 is part of Smith & Wesson's K Frame .22 family, which includes the Model 18 (Combat Masterpiece with 4-inch barrel) and Model 48 (K-22 Masterpiece MRF in .22 Magnum). These revolvers are highly regarded for training, competition, and recreational shooting. The K Frame size provides excellent handling and pointability while the .22 LR chambering offers low recoil and economical ammunition. The Model 17's 6-inch barrel provides an excellent sight radius for precision target work.

How to Identify Your S&W Model

To determine your Smith & Wesson revolver model number, swing out the cylinder and check behind the yoke on the frame for the model number stamped into the metal. You should see "17" or a dash variant like "17-1", "17-2", etc. Model numbers began in 1957-58. If no model number is present, your revolver may be a pre-model K-22. Contact us with your serial number for assistance in identifying the correct parts.

Installation & Specifications

• Professional gunsmith installation recommended
• Requires disassembly of grip frame and internal components
• Rebound spring must be properly seated for correct function
• Improper installation can cause trigger malfunction
• Factory OEM part manufactured to exact S&W specifications
• Used part inspected for wear and functionality
• Compatible with K Frame Model 17 .22 LR revolvers
• May fit other K Frame .22 models - verify compatibility
• Includes both rebound slide and spring

Trigger Performance Notes

The rebound slide assembly directly affects trigger feel and reset. A worn rebound slide can cause gritty trigger pull, inconsistent reset, or trigger binding. The rebound spring tension affects trigger return speed and feel. This assembly is essential for maintaining the smooth trigger action that K Frame revolvers are known for. The Model 17 is famous for its exceptionally smooth trigger, making it ideal for precision target shooting and developing proper trigger control skills.

Condition Notes

This is a used OEM rebound slide assembly removed from a functioning Smith & Wesson Model 17 K-22 Masterpiece revolver. Shows normal wear consistent with use. All surfaces have been inspected for excessive wear or damage. Spring tension is good. Used parts may show finish wear or handling marks typical of fired revolvers. Guaranteed to function properly when correctly installed.
