Smith & Wesson Model 17 Hammer Block - K Frame .22 LR Stainless - Used OEM Part K503
$5.99

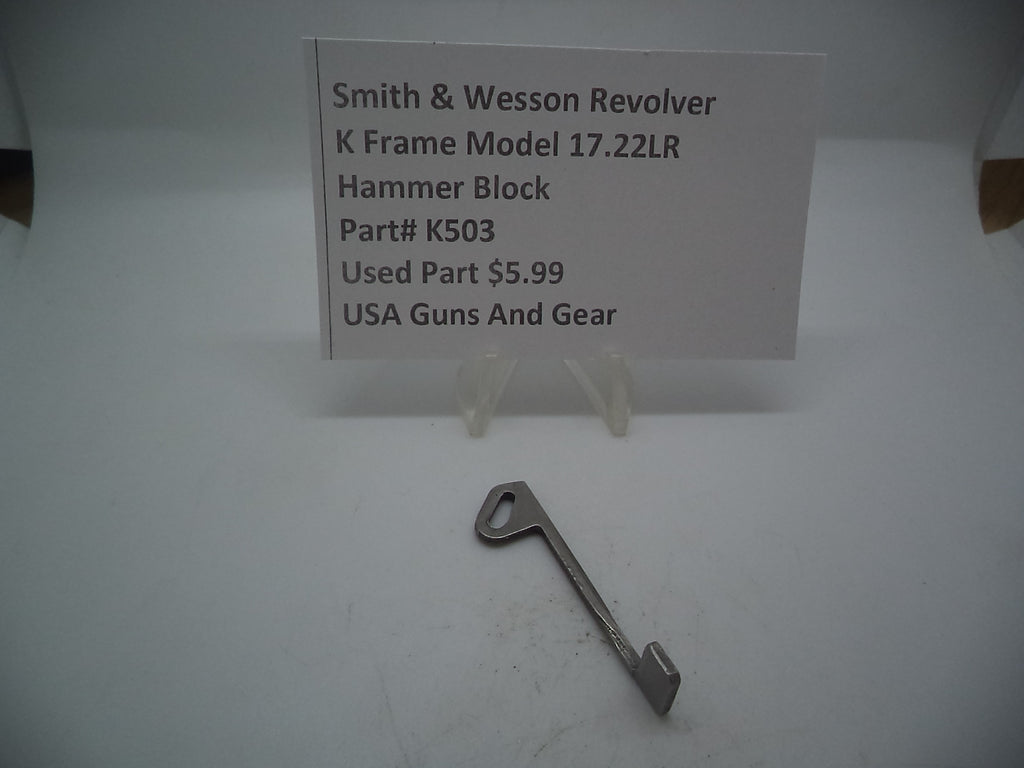

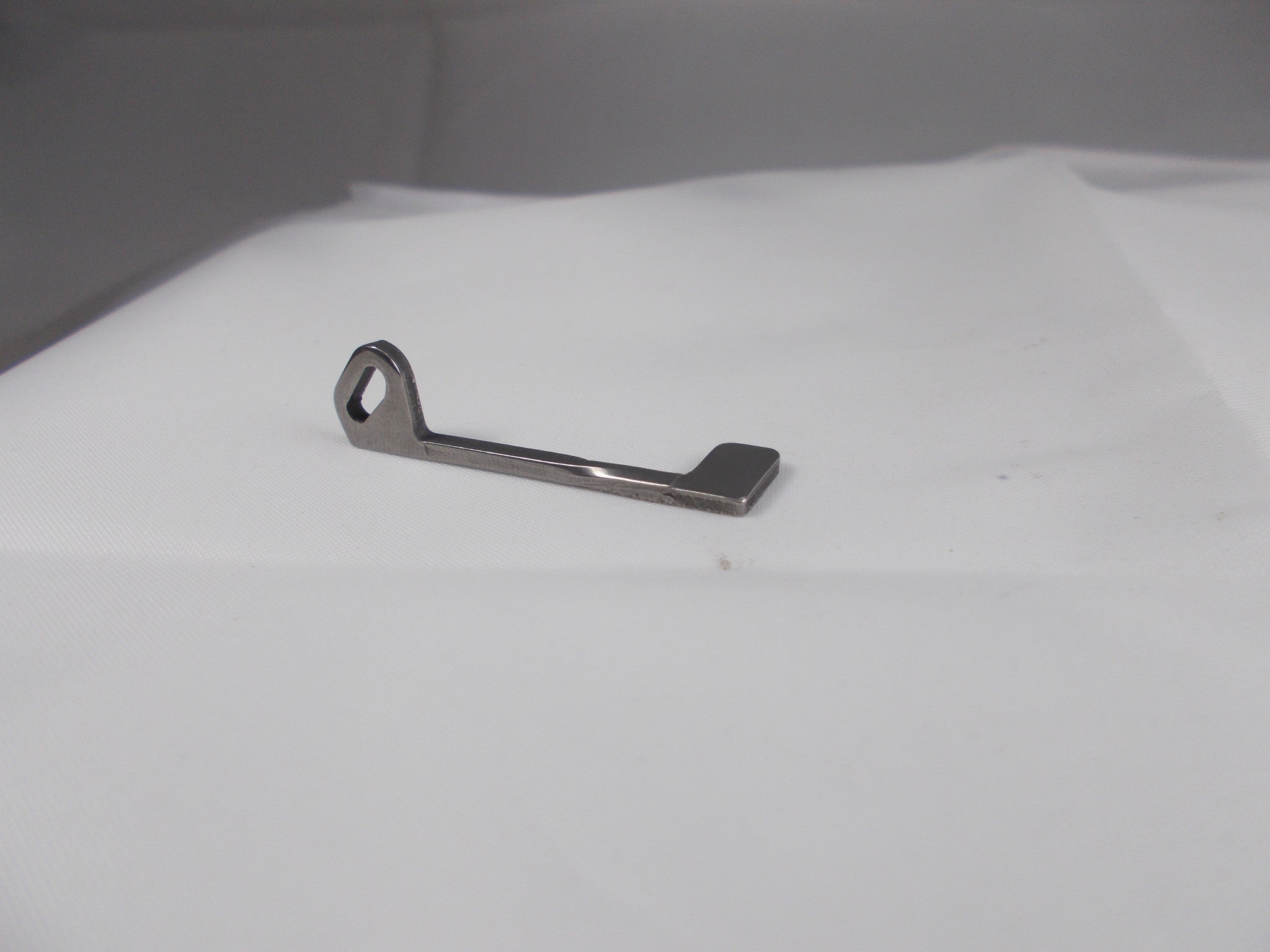

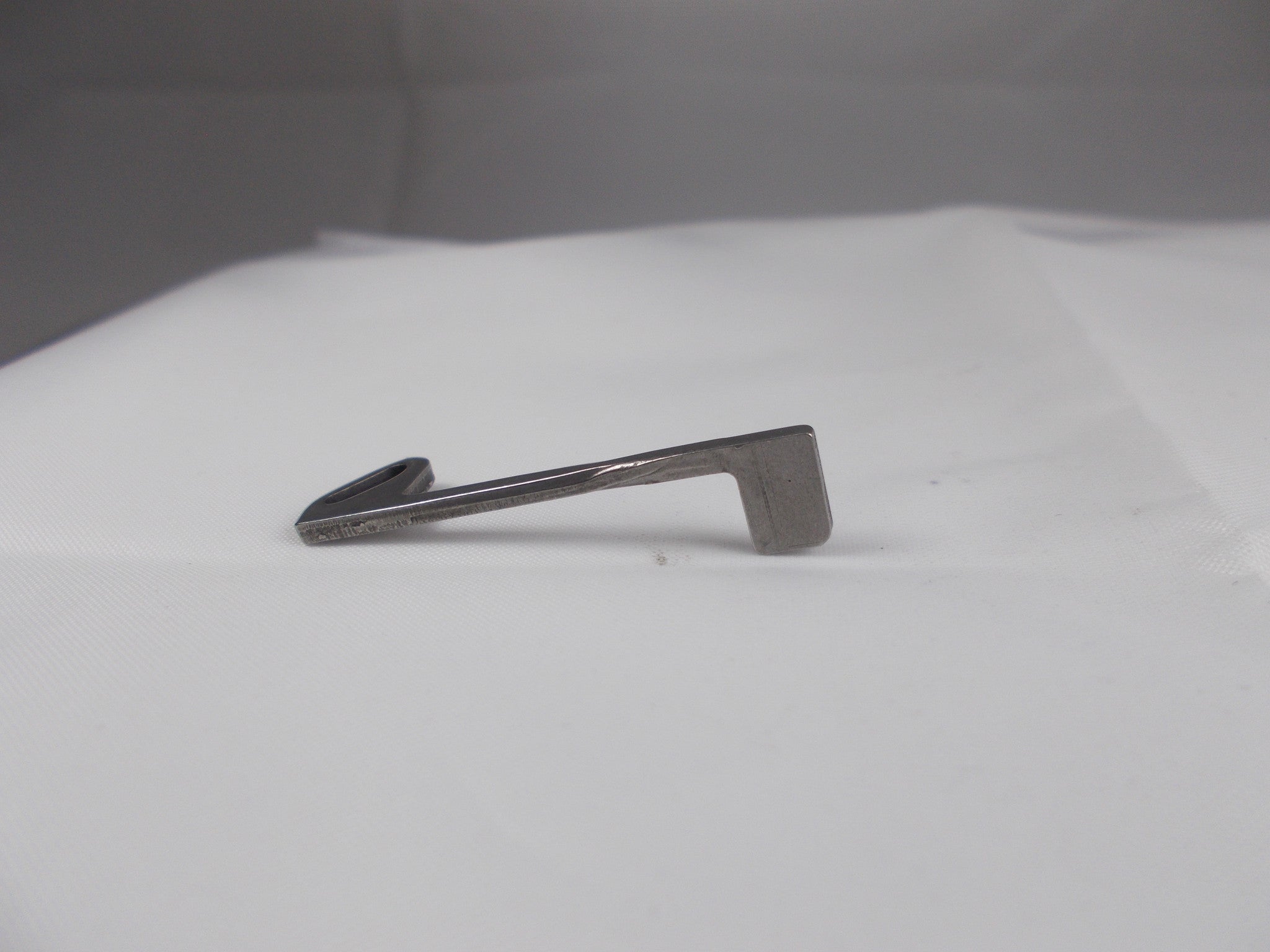

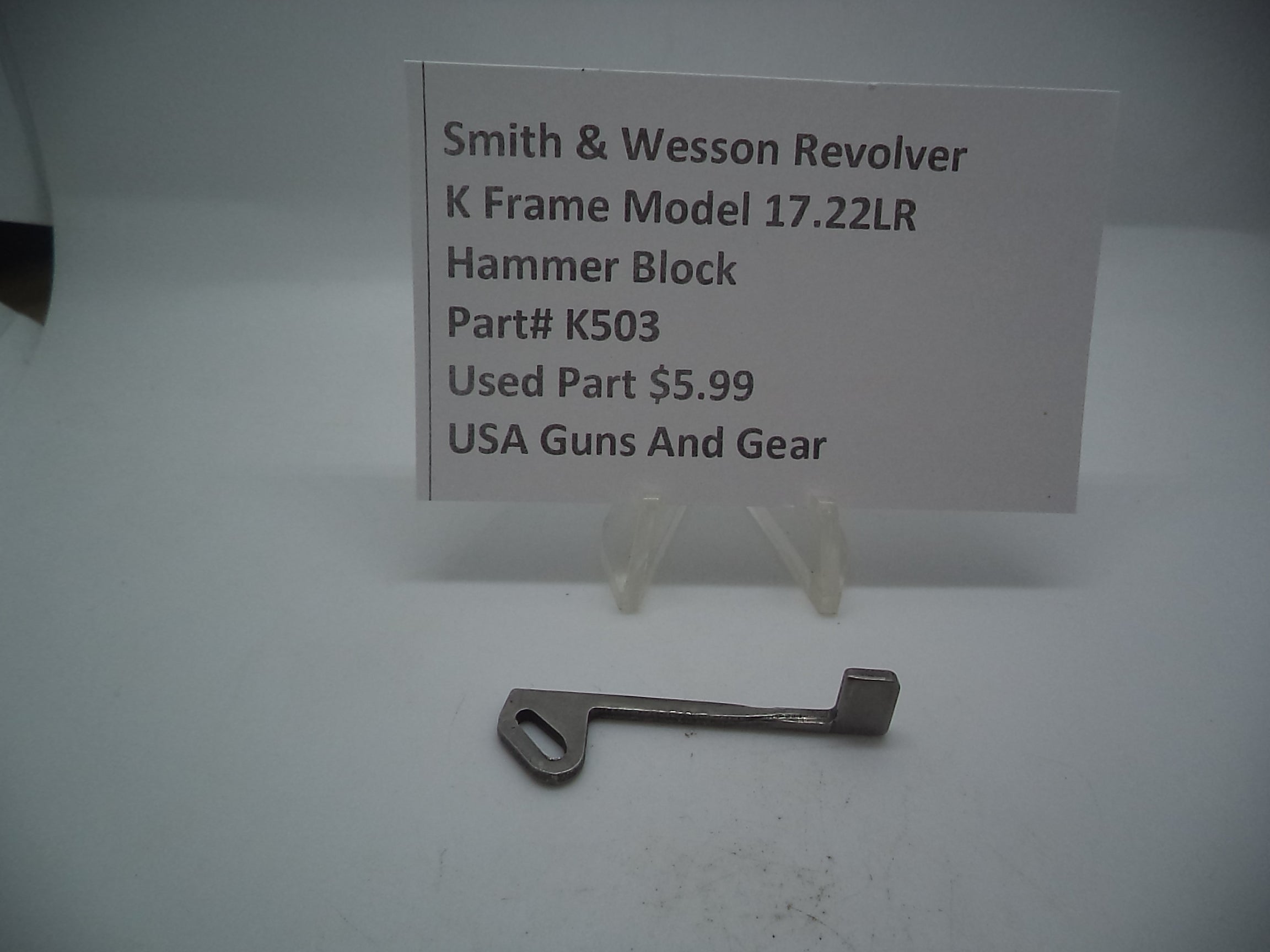

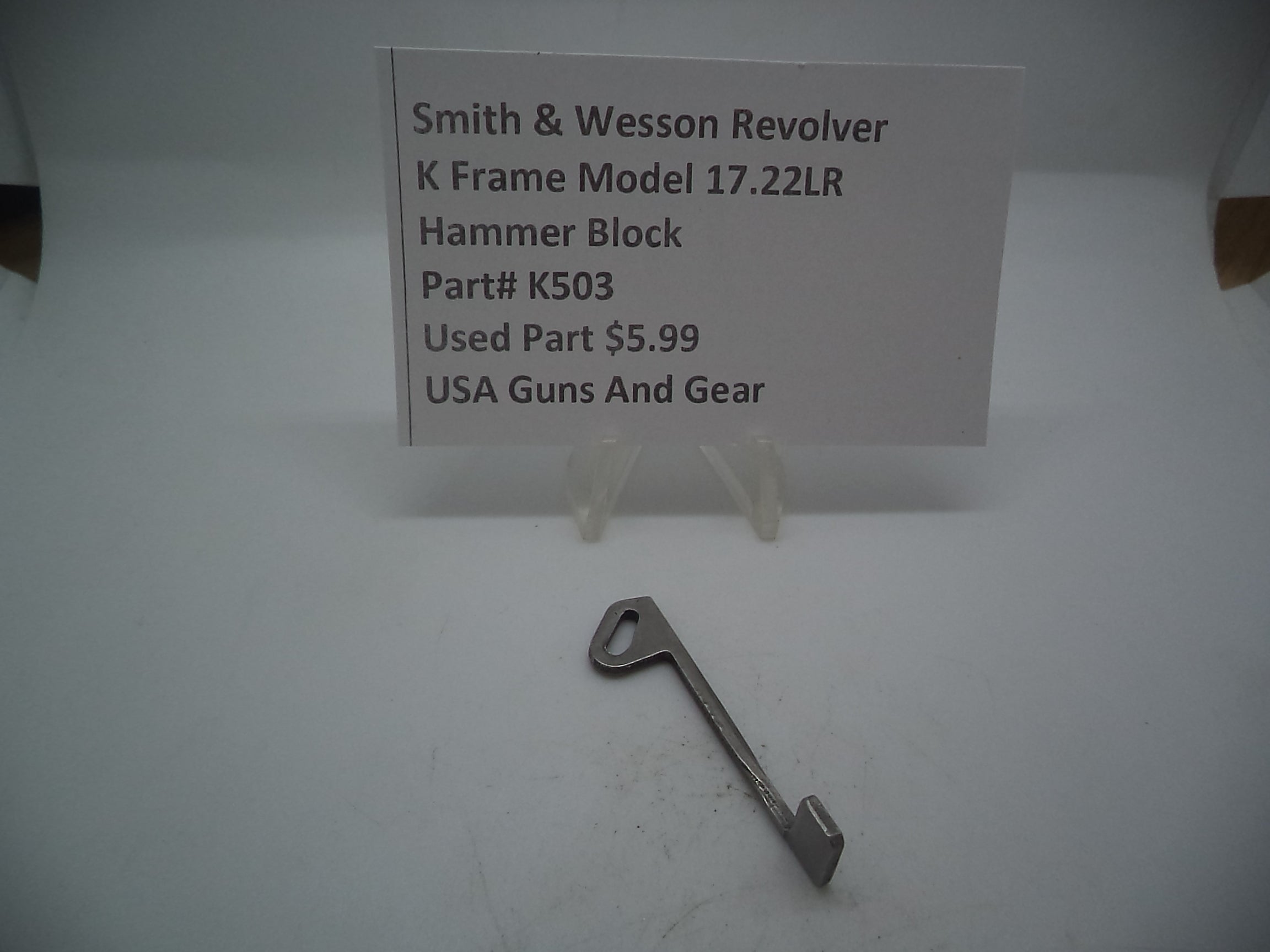

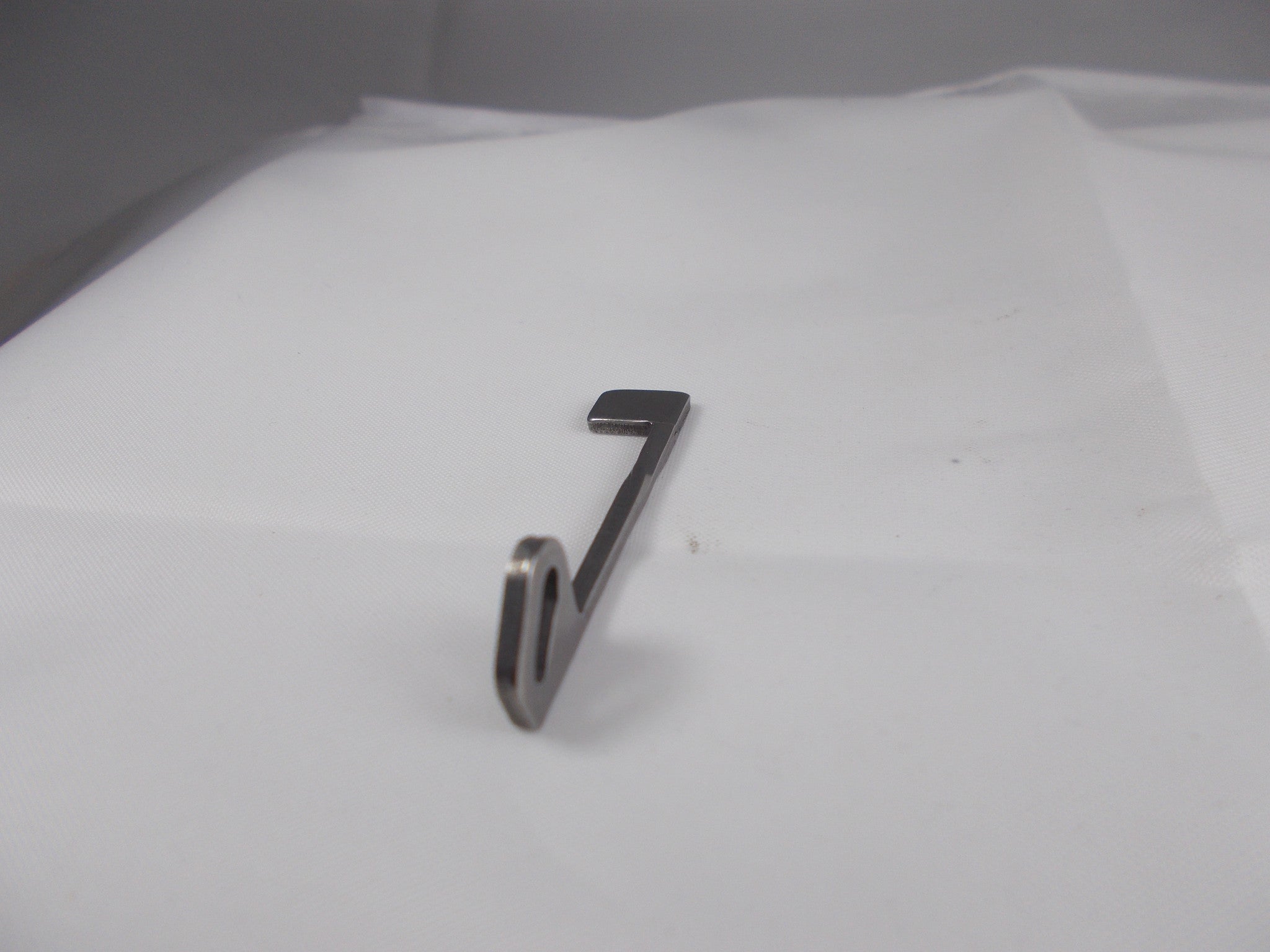

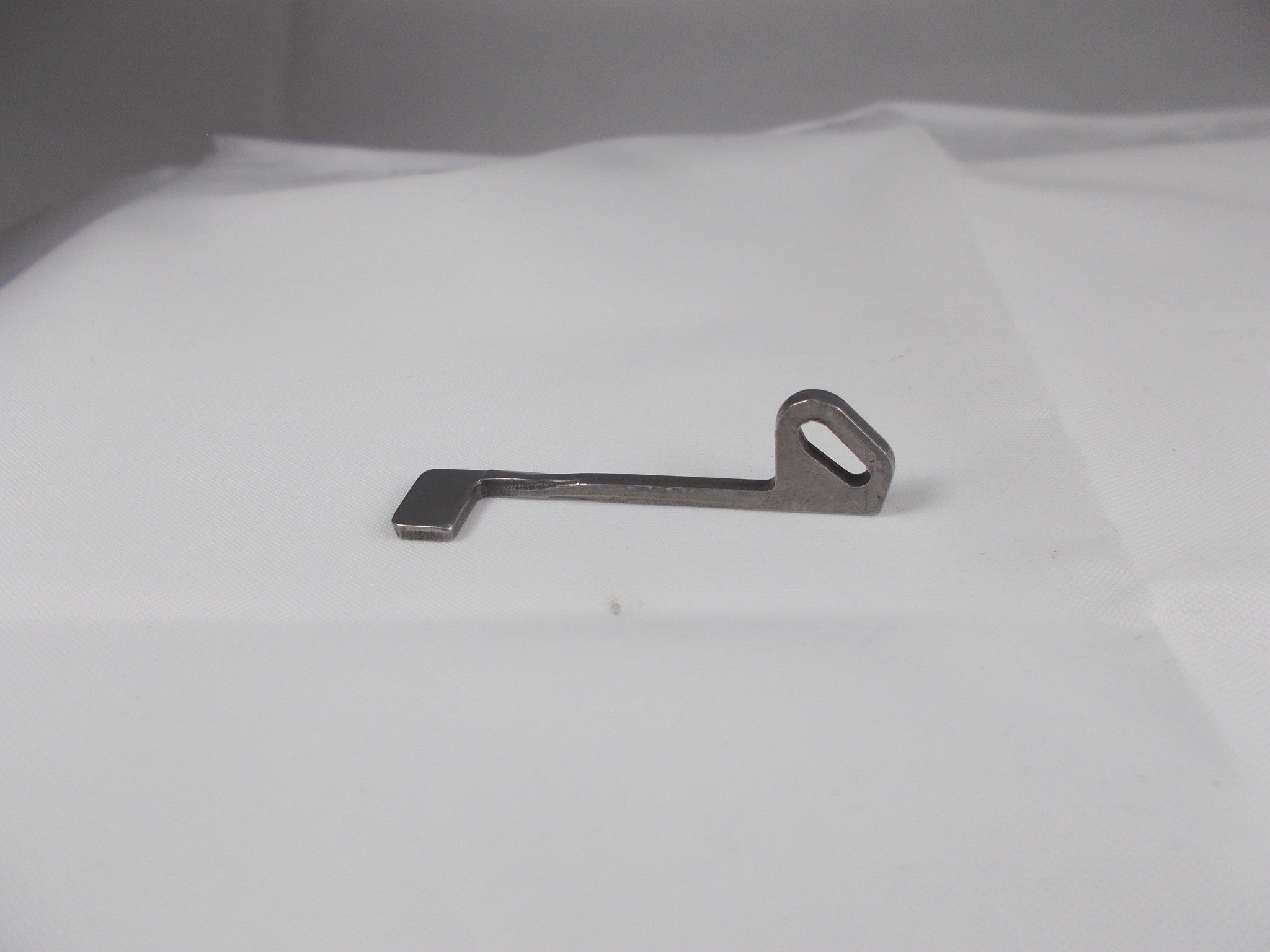

Smith & Wesson K Frame Model 17 Hammer Block - Stainless Steel
Part Number: K503
Condition: Used - Good
Frame: K Frame
Model: 17 K-22 Masterpiece
Caliber: .22 LR
Material: Stainless steel
Type: Hammer block (firing pin block)
Weight: 1 oz
Product Details
Genuine Smith & Wesson factory hammer block, also called the firing pin block or safety block, removed from a K Frame Model 17 revolver and inspected. This is a safety component, not a cosmetic part.
What's Included
- 1 x Hammer block
Model Compatibility Chart
| Frame | Model | Caliber | Fitment |
|---|---|---|---|
| K Frame | 17 K-22 Masterpiece (stainless) | .22 LR | Verified fit - part sourced from this model |
| K Frame | Other stainless K Frame .22 models | .22 LR | May fit - contact us to verify before ordering |
| J / L / N / X Frame | Any | Any | Not compatible |
Only the Model 17 fitment is verified. Contact us with your model and serial number if your revolver is not listed.
Function
The hammer block is a spring-loaded piece that sits between the hammer and the firing pin. It keeps the firing pin from moving forward even if the hammer is struck or the revolver is dropped, and only drops clear when the trigger is pulled fully to the rear. A worn, damaged, or missing hammer block can allow a drop fire, so never run a revolver without a functioning one.
Safety Testing After Installation
With the revolver unloaded, cock the hammer and release it without pulling the trigger. The hammer should not reach the firing pin. Only a full rearward trigger pull should allow the hammer to strike. If it fails this check, do not use the revolver until a qualified gunsmith repairs it.
About the Model 17
The Model 17 K-22 Masterpiece is a .22 LR target revolver on the medium K Frame, with adjustable sights, a 6-shot cylinder and typically a 6 inch barrel. It shares the handling of centerfire K Frames while being cheap to shoot, which makes it popular for target work and training.
How to Identify Your S&W Model
Swing out the cylinder and check behind the yoke on the frame for the stamped model number. You should see "17" or a dash variant such as "17-1" or "17-2". Model numbers began in 1957-58, so a revolver without one may be a pre-model K-22. Contact us with your serial number if you need help.
Condition Notes
Used OEM hammer block removed from a functioning Model 17. Normal wear consistent with use, surfaces inspected for excessive wear or damage, spring tension good, critical safety surfaces in good condition.
Installation Notes
- Professional gunsmith installation strongly recommended
- Requires disassembly of the internal action components
- Critical safety component that must function properly
- Function test the revolver after installation
- Factory OEM part made to S&W specifications
