S&W N Frame Rear Adjustable Sight Body Models 24, 25, 29, 57, 629, 657 – Part# Nkit162A
$60.99

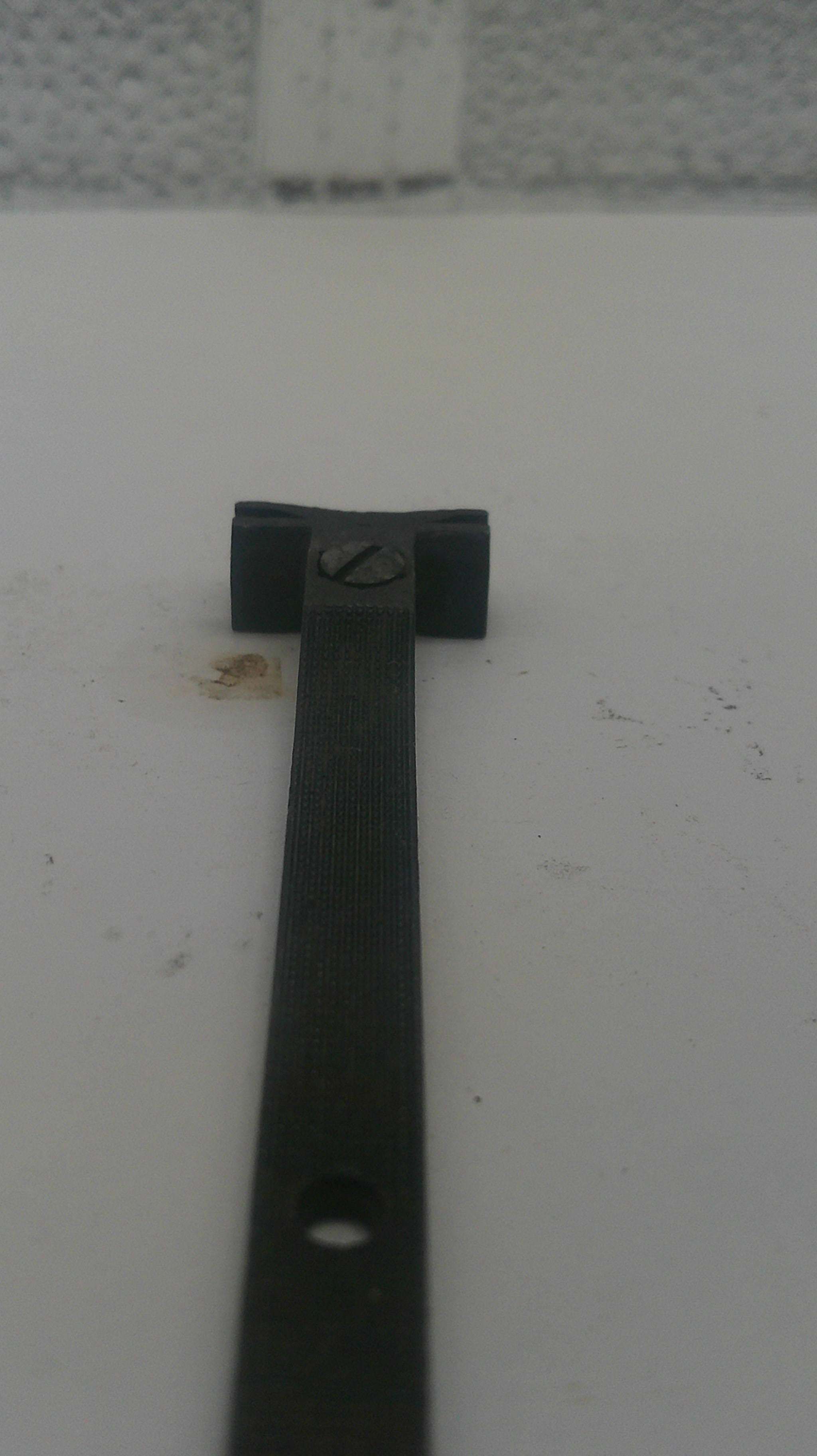

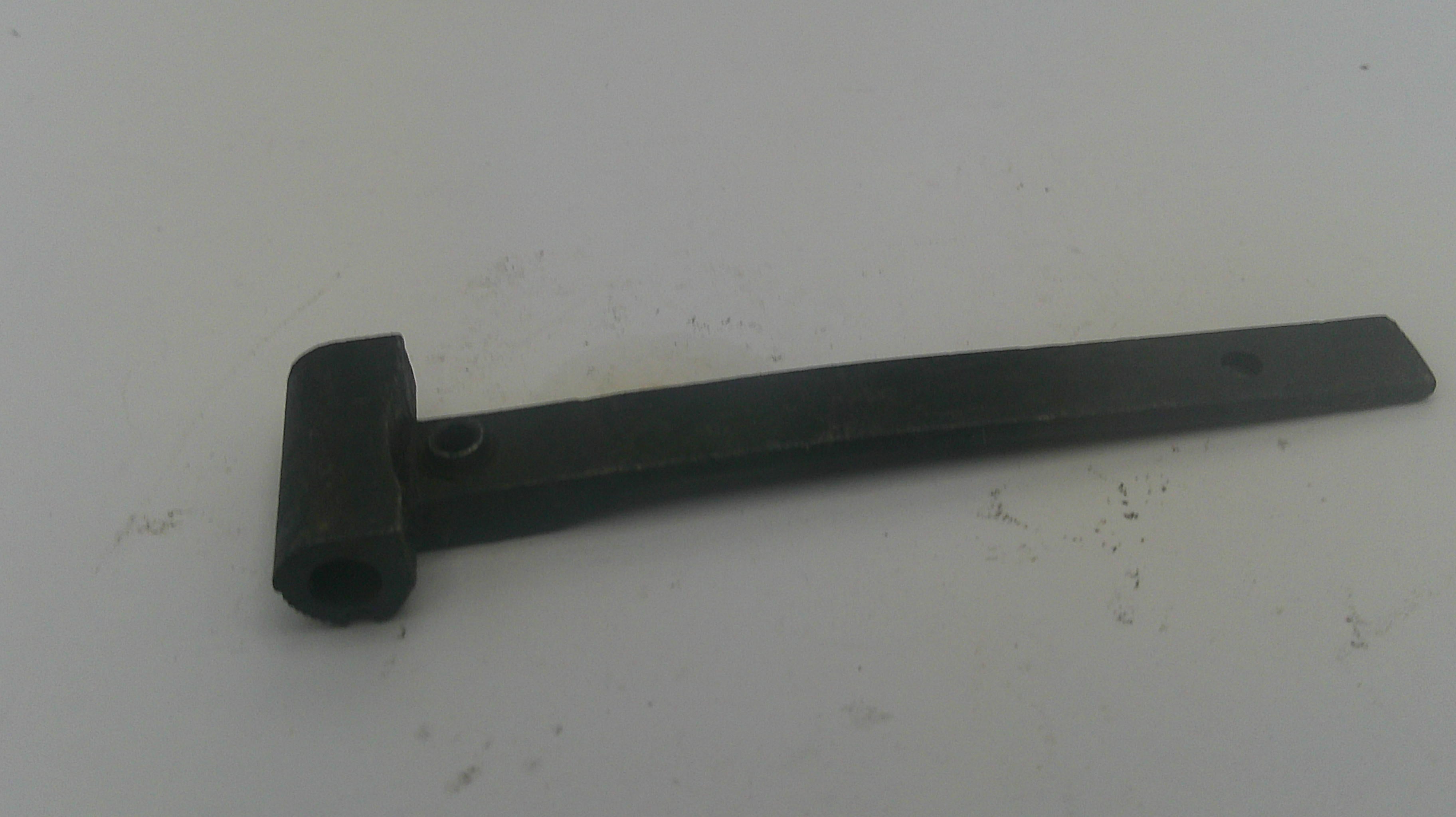

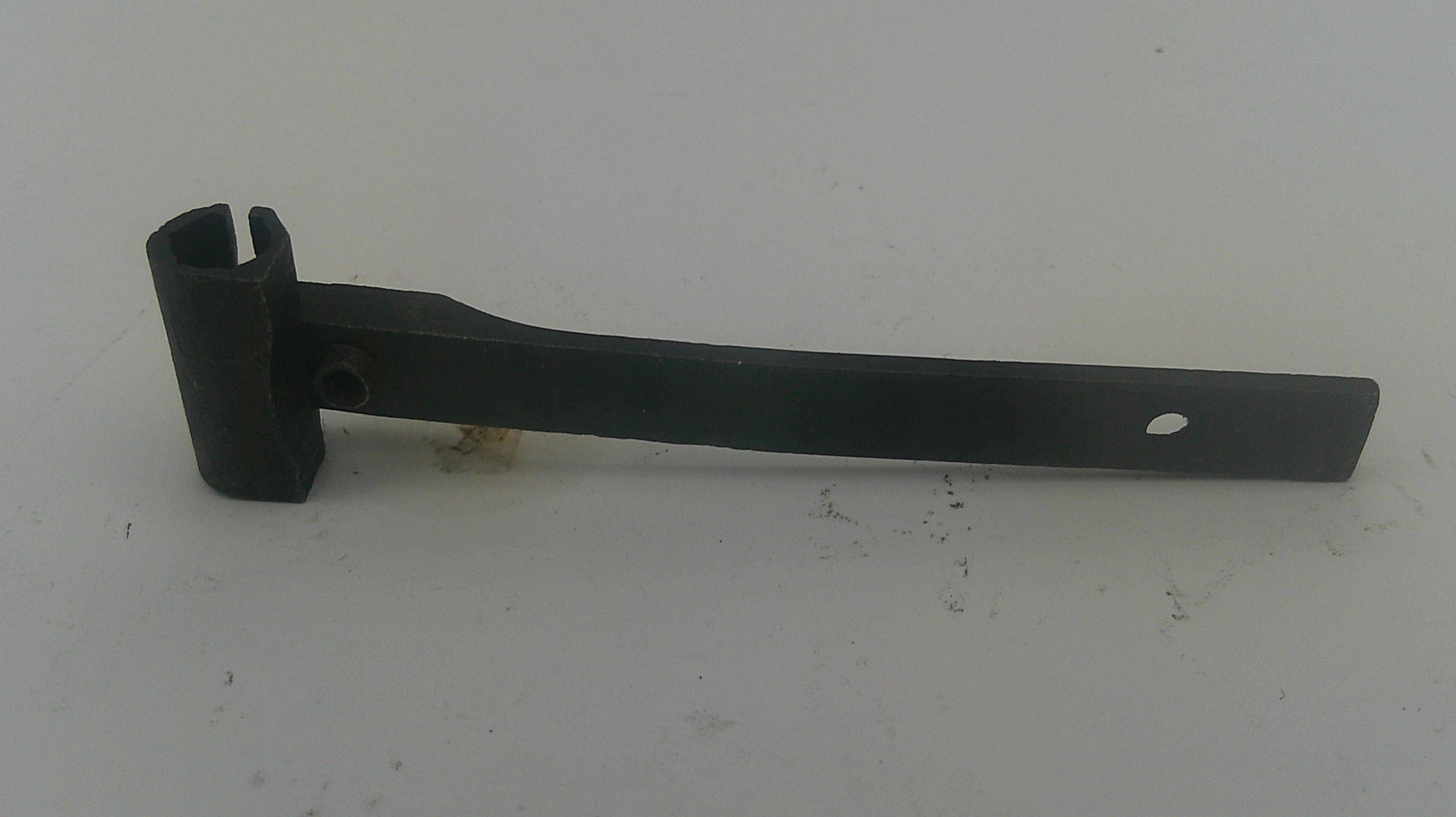

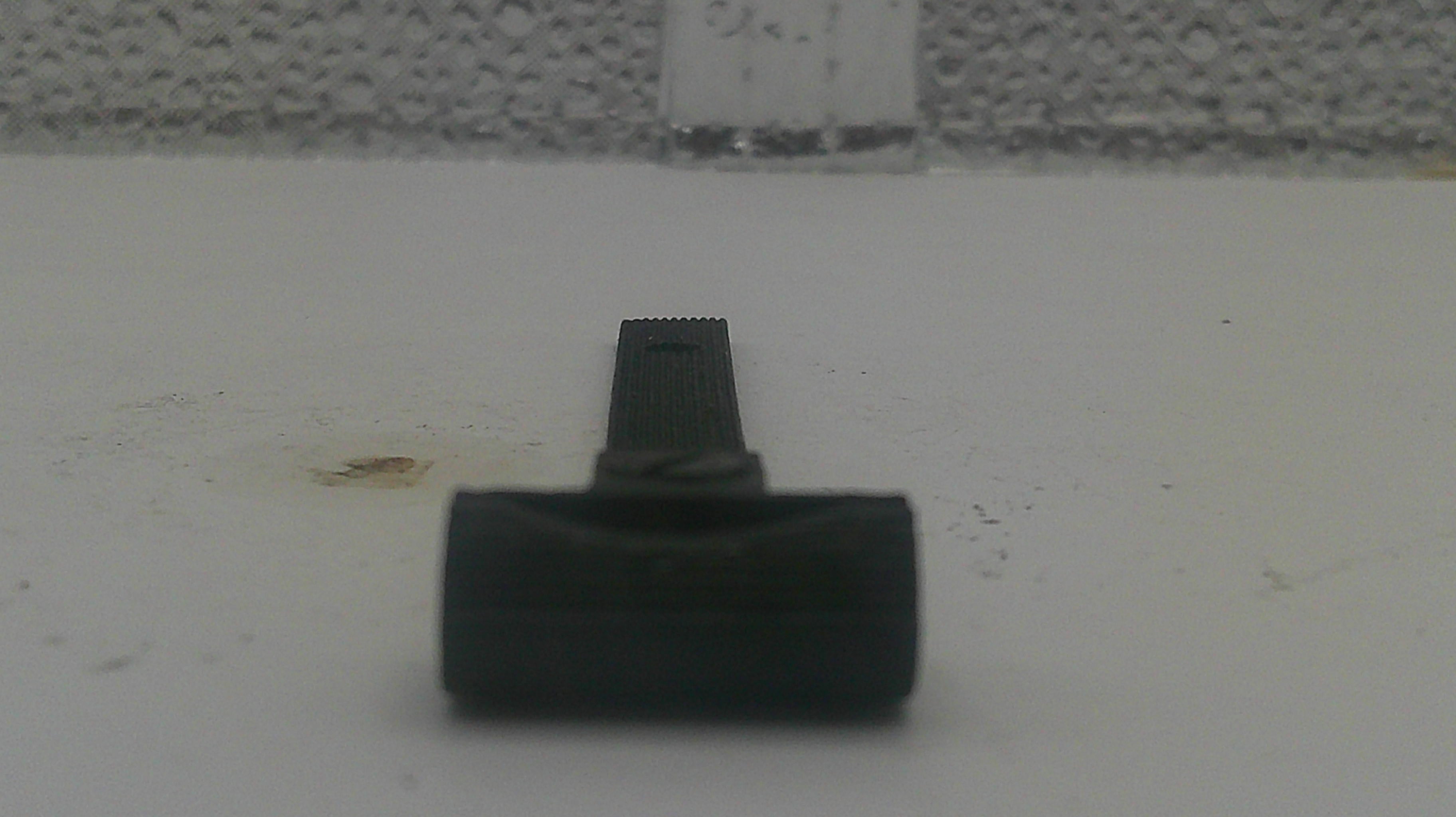

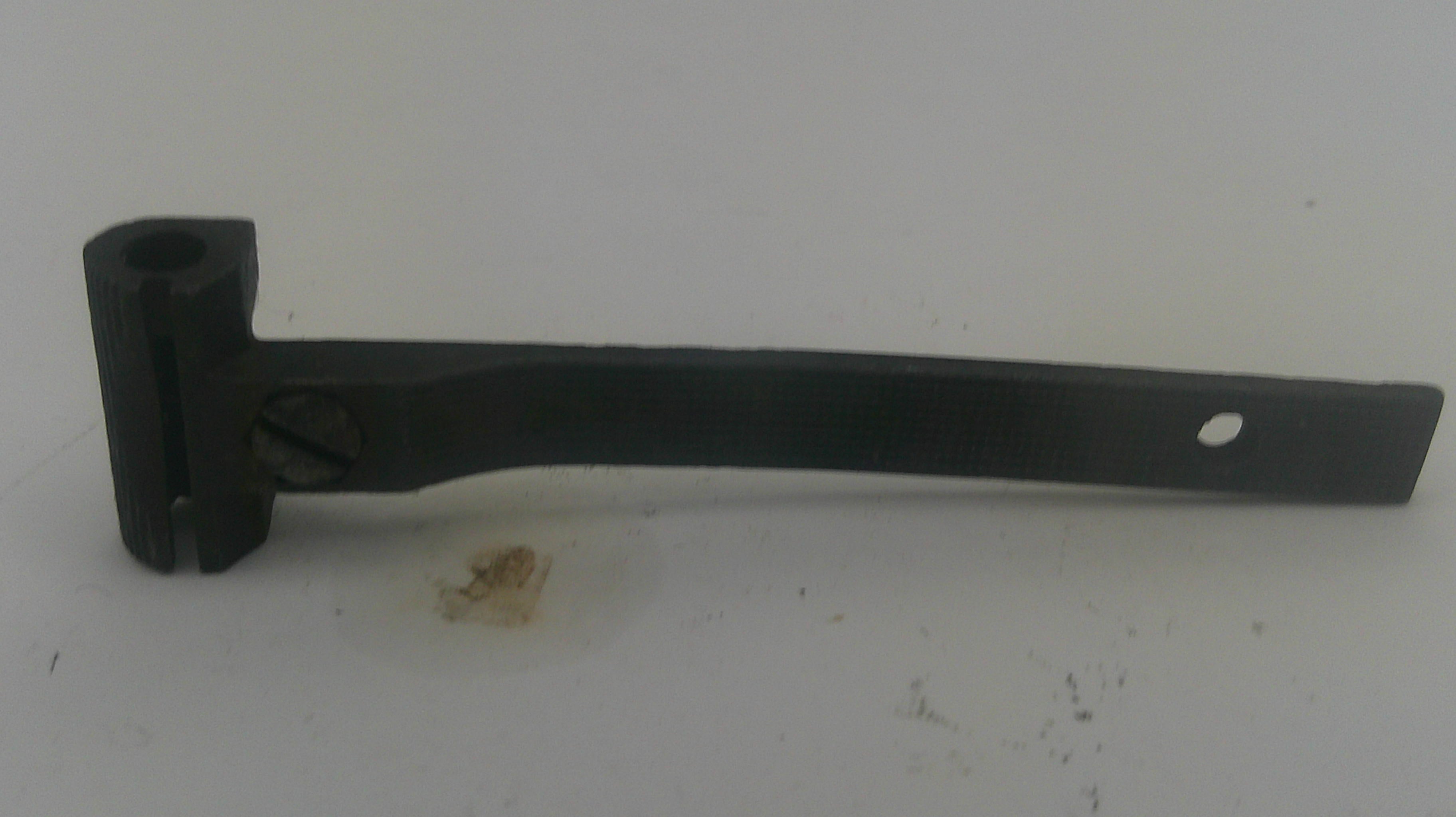

Smith & Wesson N Frame Rear Adjustable Sight Body – Used
Part# Nkit162A | Old Style Square Front Tang | Back of Sight to Mounting Hole Center: 2.09"
This is a used rear adjustable sight body only — no blade, windage screw, or stud included. The parts needed to complete a rebuild are listed below with the link to them. Inspect the photo carefully and verify the 2.09" measurement (back of sight to center of mounting hole) matches your firearm before ordering.
Compatible Models
- Model 24 (N Frame)
- Model 25 (N Frame)
- Model 29 (N Frame)
- Model 57 (N Frame)
- Model 624 (N Frame)
- Model 625 (N Frame)
- Model 629 (N Frame – stainless)
- Model 657 (N Frame – stainless)
Old style square front tang design. Not compatible with newer pinned or round-tang sight bodies.
Parts Needed to Rebuild This Sight
This sight body requires the following additional parts to complete a rebuild:
- Sight Plunger/Detent: S&W Adjustable Rear Sight Plunger/Detent – J, K, L, N, X Frame – 071580000
- Sight Plunger/Detent Spring: Smith & Wesson Revolver Rear Sight Plunger/Detent Spring – K, L, N, X Frame – 036390000
⚠ Caution: The plunger and spring are very small parts that can easily be lost during disassembly. Work over a tray or parts mat and take care not to let them spring free.
- Mounting Screw (Old Style Square Tang): Smith & Wesson Old Style Front Square Tang Sight Mounting Screw – K, L, N Frame – 037350000
-
Blade Kit (choose one):
- K/L/N Frame Rear Sight Blade Kit – .160" Black – 191490000
- K/L/N/X Frame Rear Sight Blade Kit – .160" White Outline – 191480000
- K/L/N/X Frame Rear Sight Blade Kit – .146" Black – 191450000
- K/L/N Frame Rear Sight Blade Kit – .146" White Outline – 191440000
- K/L/N/X Frame Rear Sight Blade Kit – .126" Black – 191470000
- K/L/N/X Frame Rear Sight Blade Kit – .126" White Outline – 191460000
Part Details
- OEM Smith & Wesson factory part
- Condition: Used – sight body only, no blade or hardware
- Frame Size: N Frame
- Back of Sight to Mounting Hole Center: 2.09" (See Pictures)
- Finish: Blue Steel
- Style: Old Style Square Front Tang
Old S&W Sight Chart – N Frame Models
Use the chart below to determine which blade height is correct for your N Frame model and barrel length:
| Model | Caliber | Barrel Length | Blade Height |
|---|---|---|---|
| 25 | .45 ACP / .45 Colt | 6 1/2" | .146" |
| 25-5 | .45 Colt | 4", 6" & 8 3/8" | .126" |
| 27 | .357 Magnum | 3 1/2" & 5" | .126" |
| 27 | .357 Magnum | 6" & 6 1/2" | .146" |
| 27 | .357 Magnum | 8 3/4" | .160" |
| 28 | .357 Magnum | 4" & 6" | .136" |
| 29 | .44 Magnum | 4" & 6 1/2" | .146" |
| 29 | .44 Magnum | 8 3/8" | .160" |
| 57 | .41 Magnum | 4" & 6 1/2" | .146" |
| 57 | .41 Magnum | 8 3/8" | .160" |
| 629 | .44 Magnum | 4" & 6" | .146" |
| 629 | .44 Magnum | 8 3/8" | .160" |
| 657 | .41 Magnum | 4" & 6 1/2" | .146" |
| 657 | .41 Magnum | 8 3/8" | .160" |
Installation Note
Disassembly and reassembly required. Installation and fitting by a qualified gunsmith is recommended. Factory replacement parts are manufactured to original S&W specifications and tolerances.
How to Find Your Model Number
Swing out the cylinder and check behind the yoke on the frame. Model numbers were introduced in 1957–58. If no model number is present, your revolver may pre-date 1957. Contact us with your serial number and we can help identify the correct part.
